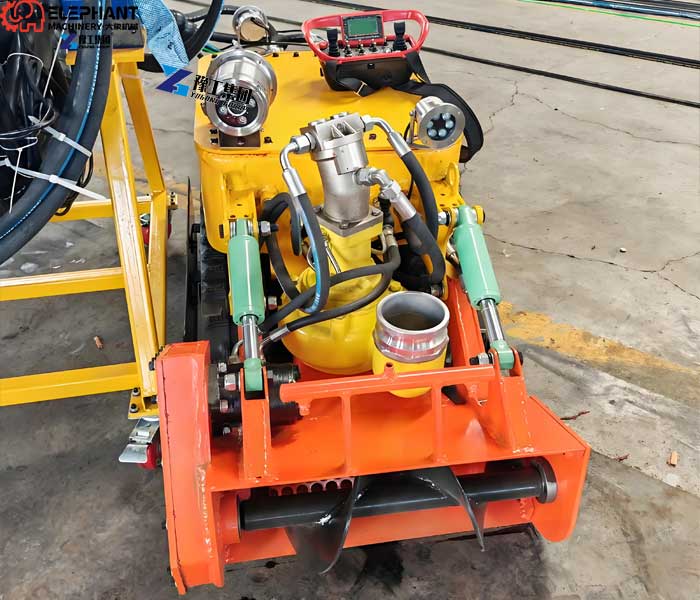

Remote-Controlled Robot for Efficient Manure Lagoon Sludge Removal
Large-scale dairy farms and livestock farms generate a significant amount of manure wastewater every day. During long-term storage in manure lagoons, slurry pits, and storage tanks, heavy organic solids gradually settle at the bottom and form dense sludge layers.
Over time, accumulated sludge reduces the effective storage capacity of manure lagoons, affects wastewater treatment efficiency, and increases the difficulty and cost of farm waste management.
Traditional sludge removal methods usually require draining the lagoon, using excavators, or manually entering the tank for cleaning. These methods are not only inefficient but also involve safety risks caused by toxic gases and unstable sludge conditions.
Our Manure Lagoon Sludge Removal Robot is designed to solve these challenges. The remote-controlled crawler robot can enter manure lagoons and slurry storage tanks to loosen, collect, and transport settled sludge without completely emptying the facility. This solution is part of our farm sludge cleaning robot series, which is designed for agricultural sludge removal applications including manure lagoons, slurry tanks, and livestock wastewater facilities.
By combining crawler mobility, sludge cutting technology, and high-capacity pumping systems, the robot provides dairy farms and livestock facilities with a safer and more efficient slurry cleaning solution.
Dairy Farm Sludge Removal Robot Parameters
| Parameter | YG450 | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | ≤1700 × 450 × 450 | 1500 × 500 × 650 | 1500 × 600 × 650 | 1600 × 700 × 650 | 1600 × 850 × 700 | 1650 × 960 × 750 | 1900 × 1200 × 750 |
| Applicable Manhole / Access | ≥600 mm opening | ≥600 mm opening | ≥600 mm opening | ≥700 mm opening | ≥800 mm opening | ≥900 mm opening | Large culvert / open access |
| Dredging Width (mm) | 450 | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–12 | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 3 | 4 | 4 | 4 | 4 or 6 |
| Pump Flow (m³/h) | 50 | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0-30 | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150 m) |
| Hydraulic Station Dimensions (mm) | 2000 × 1100 × 1500 (recommended) | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2120 × 1240 × 1200 |
| Main Motor Power (kW) | 11–15 kW | 18 | 18 | 22 | 22 | 22 | 45 kW (50 kW) / Diesel 76 kW (123 kW) |
| Hydraulic System Pressure (MPa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Custom / high-pressure system |
| Particle Size Capacity (mm) | ≤10–20 mm (soft sludge) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 20–30 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30 m/pack, high-pressure resistant |
| Control System | Wireless Remote Control | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 |
Why Manure Lagoons Need Regular Sludge Removal?
Manure lagoons are widely used in modern livestock farms for temporary storage and treatment of animal waste.
However, manure wastewater contains:
- Organic solids
- Bedding materials
- Sand particles
- Feed residues
- Mineral sediments
These materials gradually settle at the bottom and create compact sludge.
Without regular removal, accumulated sludge can cause several problems:
Reduced Storage Capacity
As sludge builds up, the available volume of the manure lagoon decreases.
This means farms may need:
- Higher operating costs
- More frequent pumping
- Additional storage facilities
Poor Waste Management Efficiency
Excessive sludge accumulation can reduce the effectiveness of manure separation and wastewater treatment processes.
For farms using manure recycling or biogas systems, removing settled solids helps maintain more stable operation.
Increased Cleaning Difficulty
Traditional methods often require:
- Stopping farm operations
- Emptying storage areas
- Hiring heavy equipment
- Sending workers into dangerous environments
For large manure lagoons, this process can take significant time and labor.
Automated Sludge Removal Solution for Dairy Farms and Livestock Facilities
The Manure Lagoon Sludge Removal Robot provides a new approach to agricultural sludge management.
Instead of manually cleaning the bottom of a lagoon, operators can control the robot remotely and complete sludge removal from a safe distance.
The system is suitable for:
- Agricultural wastewater treatment facilities
- Dairy farm manure lagoons
- Livestock wastewater ponds
- Slurry storage tanks
How the Manure Lagoon Sludge Removal Robot Works?
The robotic cleaning system integrates mechanical loosening, sludge collection, and pumping technology.
1. Remote-Controlled Operation
The robot is operated through a wireless remote-control system.
Operators can:
- Control forward and backward movement
- Adjust working direction
- Monitor cleaning progress
- Keep away from hazardous areas
This greatly reduces the need for manual operation near manure storage facilities.

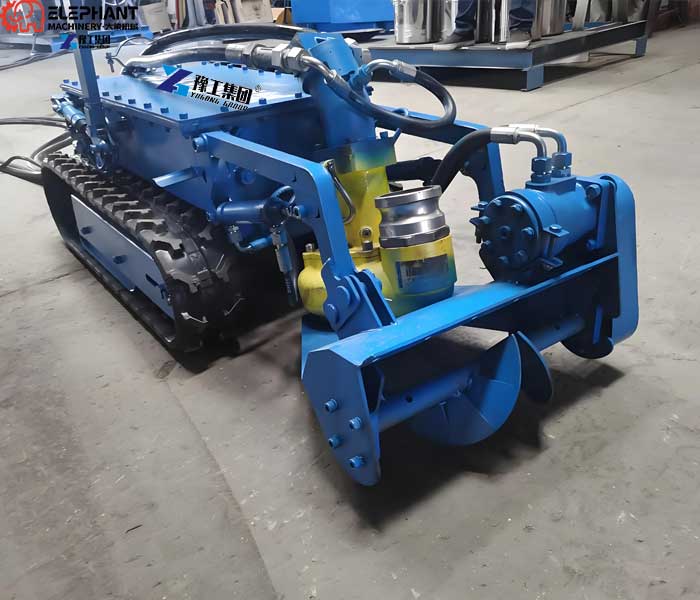

2. Heavy-Duty Crawler Design for Muddy Environments
Manure lagoons usually contain soft sludge layers and uneven surfaces.
The crawler-type undercarriage provides:
- Large ground contact area
- Stable movement on soft sediment
- Strong traction in muddy conditions
Compared with wheeled equipment, the crawler structure is more suitable for low-bearing-capacity sludge environments.
3. Sludge Breaking and Collection System
The bottom sludge inside manure lagoons can become compact after long-term accumulation.
The robot uses a front-mounted auger system to:
- Break hardened sludge
- Mix settled solids
- Prevent pipeline blockage
The loosened sludge is then collected and transported through the pumping system.
4. High-Efficiency Sludge Pumping System
After sludge is loosened, the integrated pump transfers it through a discharge pipeline.
The pumping system can be customized according to:
- Sludge thickness
- Transportation distance
- Required flow rate
- Site conditions
This makes the equipment suitable for different farm wastewater management projects.
Key Advantages of Manure Lagoon Sludge Removal Robot
1. No Need to Drain the Entire Lagoon
One of the biggest advantages is that the robot can work directly inside the manure lagoon.
Farm operators do not need to:
- Completely empty the lagoon
- Stop manure storage operations
- Wait for drying time
This reduces downtime and improves cleaning efficiency.
2. Safer Alternative to Manual Cleaning
Manure storage areas may contain:
- Hydrogen sulfide
- Ammonia gas
- Methane
- Low-oxygen environments
The remote-controlled sludge cleaning robot allows operators to complete cleaning without entering hazardous spaces.
3. Designed for Thick Organic Sludge
The system is specifically developed for difficult sludge conditions, including:
- Cow manure sediment
- Livestock wastewater sludge
- Organic deposits
- Mixed agricultural sludge
The auger and pumping system work together to improve removal efficiency.
4. Flexible Application for Different Farm Sizes
The equipment can be configured according to different requirements:
- Small dairy farms
- Large livestock farms
- Centralized manure treatment facilities
- Biogas plants
Product Details and Customization Options
As a professional sludge removal equipment manufacturer, we provide customized robotic cleaning solutions according to project requirements.
Typical configuration includes:
Robot Body
- Crawler-type chassis
- Heavy-duty steel structure
- Waterproof electrical components
- Corrosion-resistant design
Cleaning System
- Rotating sludge-cutting auger
- Sludge collection mechanism
- Anti-clogging pipeline design
Pumping System
Customized according to:
- Pump flow requirements
- Sludge characteristics
- Discharge distance
Control System
- Easy operation interface
- Remote operation
- Long-distance control option
Applications of Slurry Cleaning Robot
The slurry cleaning robot can be used in various agricultural and environmental applications.
Dairy Farm Manure Lagoons
For removing settled sludge from:
- Cow manure storage lagoons
- Dairy wastewater ponds
- Slurry tanks
Livestock Farms
Suitable for:
- Cattle farms
- Pig farms
- Poultry farms
Helping remove accumulated organic sediment from wastewater facilities.
Agricultural Biogas Plants
The robot can also support anaerobic digestion projects by removing excessive sediment from manure storage and pre-treatment tanks.
Manufacturing Capability and Customized Sludge Removal Solutions
Engineering-Based Equipment Design
Every manure lagoon has different conditions, including sludge thickness, lagoon structure, and discharge distance.
Our engineering team evaluates:
- Lagoon size and depth
- Sludge characteristics
- Required cleaning capacity
- Transportation distance
to design a suitable robotic sludge removal solution.
Customized Manufacturing
Different farms require different configurations.
We can customize:
- Robot dimensions
- Pump capacity
- Pipeline length
- Control system
- Working depth
to match specific project requirements.
Factory Production and Quality Control
With professional manufacturing facilities and experienced technicians, we focus on:
- Reliable mechanical structure
- Stable electrical systems
- Waterproof protection
- Long-term operation performance
Each machine is tested before delivery to ensure it meets customer requirements.
Netherlands Dairy Farm Sludge Removal Project
A dairy farm in the Netherlands contacted us because accumulated sludge had reduced the capacity of its manure storage system.
After understanding the customer’s working environment, our engineering team designed a customized robotic sludge removal solution.
The system included:
- Remote-controlled crawler sludge cleaning robot
- Sludge breaking auger
- High-efficiency pumping system
- Long-distance discharge pipeline
The solution successfully removed accumulated manure sludge while avoiding manual entry into the storage area.
Read the complete project: Dairy Farm Sludge Removal Project in Netherlands | Robotic Sludge Cleaning Solution
Why Choose a Robotic Sludge Removal Solution?
Reduce Labor and Safety Risks
Traditional lagoon cleaning often requires workers and heavy equipment to operate in dangerous environments.
The remote-controlled robot allows operators to remove sludge without entering manure storage areas.
Improve Cleaning Efficiency
The combination of:
- sludge-breaking auger
- crawler movement
- high-capacity pump
helps remove settled sludge more efficiently than conventional manual methods.
Minimize Farm Downtime
The robot can operate without completely emptying the lagoon, helping farms maintain normal manure storage operations.
Suitable for Different Agricultural Waste Systems
The equipment can be applied in:
- Dairy farms
- Cattle farms
- Livestock wastewater facilities
- Biogas-related projects
FAQ About Manure Lagoon Sludge Removal Robot
1. What is a manure lagoon sludge removal robot?
It is a remote-controlled machine designed to remove accumulated sludge from manure lagoons, slurry tanks, and livestock wastewater facilities.
2. Can the robot clean thick manure sludge?
Yes. The cutting auger helps loosen compact sludge, while the pumping system transports the removed material outside the lagoon.
3. Does the lagoon need to be emptied before cleaning?
No. The robot can operate directly inside the lagoon, reducing downtime and cleaning costs.
4. Is this the same as a cow barn cleaning robot?
No. A cow barn cleaning robot is designed for removing fresh manure from floors.
The manure lagoon sludge removal robot is designed for removing settled sludge from storage ponds and tanks.
5. What information is needed for equipment selection?
We usually need:
- Lagoon size
- Sludge depth
- Sludge type
- Pumping distance
- Required cleaning capacity
Our engineers will recommend the suitable solution.
6. What other agricultural sludge cleaning applications can this robot handle?
Besides manure lagoon sludge removal, our farm sludge cleaning robot can also be used for livestock wastewater ponds, biogas-related sludge removal, and other agricultural waste management projects.
Conclusion
The Manure Lagoon Sludge Removal Robot provides dairy farms and livestock facilities with a safer and more efficient way to manage accumulated sludge.
By combining crawler mobility, remote operation, sludge breaking, and pumping technology, the system helps farms maintain storage capacity, improve waste management efficiency, and reduce cleaning risks.
For farms looking for a reliable slurry tank cleaning solution and automated agricultural sludge removal equipment, robotic cleaning technology offers a practical alternative to traditional methods.
