Sludge treatment is an important part of dredging and sediment removal projects. When a dredging robot extracts sludge from a pond, lake, tank, or industrial basin, the discharged material is usually a mixture of water, fine sediment, sand, and other suspended solids. This slurry should not be discharged directly into the environment without appropriate assessment and treatment.
Elephant Dredging provides sludge treatment equipment, including mud sand separators and chamber filter presses, to support slurry separation, sludge dewatering, and wastewater pretreatment. By separating suitable solid particles and reducing the water content of sludge, these machines can help simplify solids handling and support more responsible water management.
Depending on the slurry characteristics and project requirements, treated water may be reused for suitable purposes or sent for further treatment before discharge. The required treatment process depends on applicable environmental standards and the intended use of the water.
Sludge Treatment Equipment of Elephant Dredging

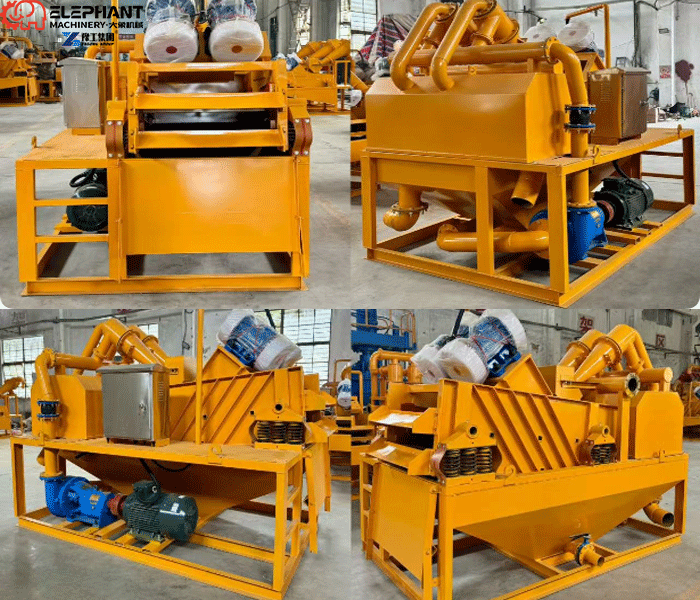

1. Mud Sand Separator
A mud sand separator is designed to separate sand and suitable solid particles from slurry. In dredging projects, it can serve as a preliminary treatment stage when the extracted material contains enough sand or coarse particles to justify additional separation.
Removing these particles before downstream treatment can help reduce the solids load on subsequent equipment and make the overall treatment process more manageable. The actual separation performance depends on the separator’s working principle, particle size distribution, slurry concentration, and feed rate.
Typical applications include:
- Sand-containing slurry from lake, pond dredging
- Sediment and slurry treatment for industrial tanks and basins
- Construction and foundation drilling slurry treatment
- Sand and gravel processing
- Other applications requiring sand and coarse-particle separation
A mud sand separator does not remove every fine suspended particle or dissolved contaminant. Further treatment may be required to meet the project’s water quality objectives.

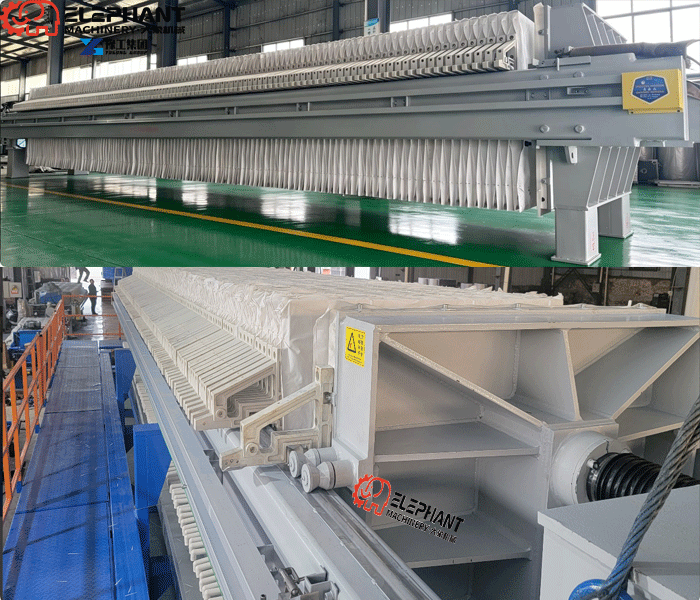

2. Chamber Filter Press
A chamber filter press uses pressure filtration to separate suspended solids from liquid. Slurry enters the filter chambers, where solids accumulate on the filter cloth to form filter cake while the liquid passes through as filtrate.
In dredging and sludge treatment projects, the filter press can be used as a dewatering and wastewater pretreatment stage. It helps reduce the moisture content and volume of collected sludge, making the solid residue easier to handle, transport, and manage.
The filtrate may still contain fine particles or dissolved substances. Depending on its quality and the intended application, it may require additional filtration, clarification, or other treatment before reuse or discharge.
Typical applications include:
- Dewatering sludge collected during dredging
- Treating slurry from industrial tanks and settling basins
- Wastewater sludge dewatering
- Slurry treatment in sand and mineral processing
- Other solid-liquid separation applications
The suitable filter press model and configuration depend on slurry properties, required processing capacity, filtration cycle time, filter cake characteristics, and installation conditions.
How Sludge Treatment Equipment Supports Environmental Protection?
A suitable sludge treatment process helps manage both the solid and liquid fractions produced during dredging. Instead of treating sediment removal as the only objective, the treatment system also considers how the extracted slurry should be processed and how the resulting water and solids should be managed.
A typical treatment process may include the following stages:
Dredging Robot → Slurry Transfer → Mud Sand Separator → Chamber Filter Press → Filtrate Assessment and Further Treatment
- Slurry extraction: A dredging robot collects sediment and pumps the resulting slurry to the treatment area.
- Sand separation: Where needed, a mud sand separator removes suitable sand and coarse particles from the slurry.
- Sludge dewatering: A chamber filter press separates additional liquid from the remaining slurry and produces filter cake.
- Water management: The filtrate is assessed and, where necessary, treated further before being reused for a suitable purpose or discharged in accordance with applicable requirements.
- Solids management: Separated sand and filter cake are collected for appropriate reuse, transport, disposal, or further processing, subject to their properties and local requirements.
Not every project needs both a mud sand separator and a filter press. The process should be configured according to the material, treatment objectives, available space, required throughput, and environmental requirements.
How to Choose the Right Sludge Treatment Equipment?
The appropriate equipment depends on the main treatment objective:
- Mud sand separator: Suitable when the slurry contains sand or coarse particles that need to be separated before further processing.
- Chamber filter press: Suitable when the primary objective is to dewater sludge and separate liquid from suspended solids.
- Combined treatment system: Worth considering when preliminary sand separation and subsequent sludge dewatering are both required.
For projects with water recovery objectives, equipment selection should also consider the required filtrate quality and any additional treatment needed for the intended reuse or discharge.
Before selecting equipment, it is helpful to provide information about the slurry source, particle size, solids concentration, processing volume, and local environmental requirements.
Get a Sludge Treatment Solution for Your Project
Every dredging and sludge treatment project has different material characteristics and environmental requirements. Elephant Dredging can help you evaluate suitable mud sand separation and sludge dewatering configurations based on your application.
Contact our team with details about your slurry, expected processing volume, and treatment objectives to discuss suitable equipment and request a quotation.
