Robotic Sludge Removal Solution for Efficient Biogas Digester Maintenance

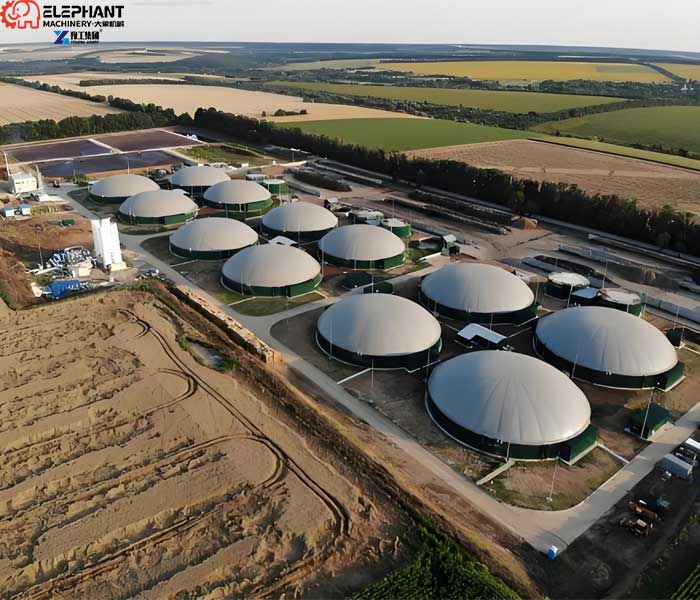

A biogas plant in Denmark contacted us through Google with a challenge: accumulated sediment inside its anaerobic digester was affecting the effective working volume and long-term operating efficiency.
During continuous anaerobic digestion, organic materials, sand particles, and heavy solids can gradually settle at the bottom of the digester tank. Over time, these deposits may reduce available space, affect mixing performance, and increase maintenance difficulties.
Traditional cleaning methods usually require shutting down the system, emptying the tank, and arranging manual cleaning operations. For large anaerobic digesters, this process can be expensive, time-consuming, and potentially dangerous.
Based on the customer’s requirements, our engineering team provided a customized anaerobic digester cleaning robot solution.

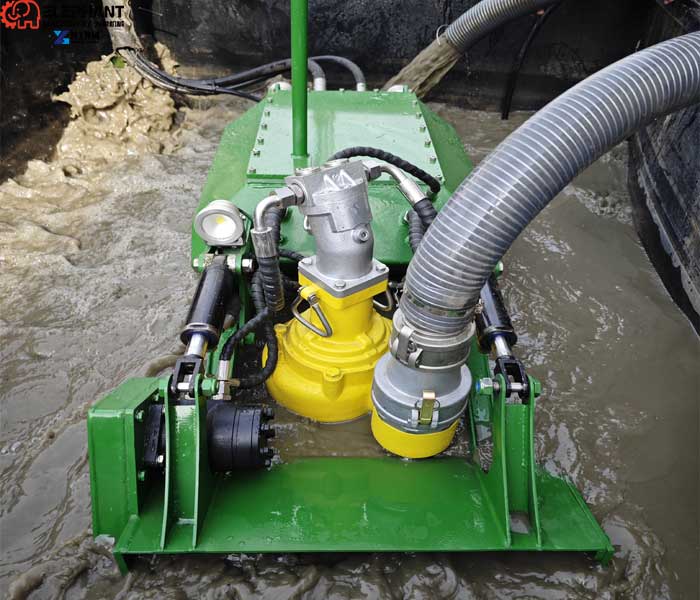

The remote-controlled crawler robot was designed to enter the digester tank, loosen settled sludge through an auger system, and transport the removed material outside through a high-capacity pumping system.
This robotic cleaning solution helped the Danish biogas plant improve maintenance efficiency while reducing safety risks associated with traditional digester cleaning methods.
Project Background: Sludge Accumulation in Anaerobic Digester
Denmark has a well-developed biogas industry, with many plants processing agricultural waste such as manure slurry and other organic materials to produce renewable energy.
During the anaerobic digestion process, feedstock is continuously mixed and converted into biogas. However, some heavy materials may gradually settle at the bottom of the digester tank.
Typical accumulated materials include:
- Organic solids
- Sand and grit particles
- Heavy manure sediment
- Inert materials from feedstock
When sediment builds up over a long period, it can lead to:
- Reduced effective digester capacity
- Lower mixing efficiency
- Increased maintenance requirements
- Difficult cleaning operations
For this Danish biogas plant, removing bottom sediment without damaging normal operation was the key requirement.
Challenges of Traditional Anaerobic Digester Cleaning
1. Large Tank Size Makes Cleaning Difficult
Anaerobic digesters are usually large structures with limited access points.
Traditional cleaning often requires:
- Shutdown of the system
- Removal of internal materials
- Extensive manpower
This can interrupt biogas production schedules.
2. Confined Space Creates Safety Risks
Entering anaerobic digesters requires strict safety procedures because these environments may contain:
- Methane
- Hydrogen sulfide
- Oxygen-deficient areas
A remote-controlled cleaning system allows operators to work from a safe position.
3. Settled Sludge Is Difficult to Remove
The bottom sediment inside a digester is often dense and mixed with organic materials.
Ordinary pumps may struggle because the sludge:
- Has high viscosity
- Contains solid particles
- Is difficult to flow naturally
A dedicated sludge removal system is required.
Customized Anaerobic Digester Cleaning Robot Solution
After evaluating the customer’s requirements, our engineers developed a robotic sludge removal system suitable for anaerobic digestion applications.
The solution included:

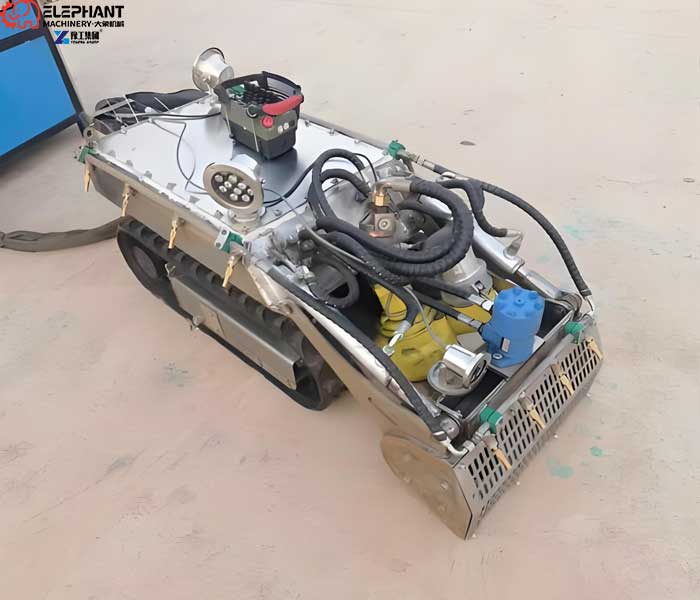

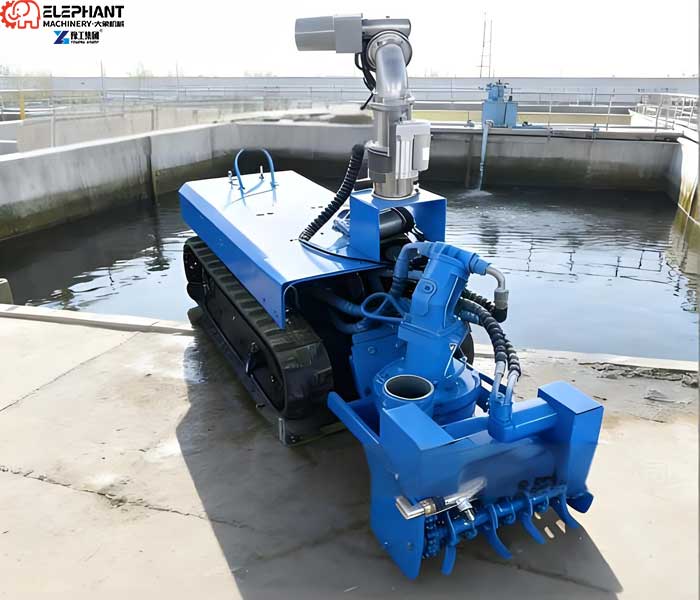

Remote-Controlled Crawler Robot
The crawler design allows stable movement on uneven and sludge-covered surfaces inside the digester.
Main advantages:
- Remote operation
- Stable traction
- Suitable for confined tanks
- Reduced manual intervention

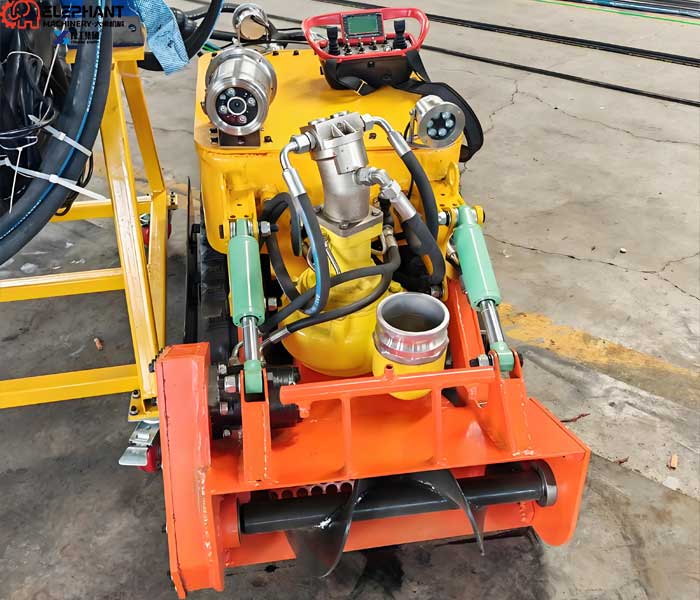

Sludge Breaking Auger System
Long-term sediment accumulation can become compact.
The front auger system helps:
- Break hardened sludge layers
- Mix settled materials
- Improve pumping efficiency
High-Performance Sludge Pumping System
After sludge is loosened, the pumping system transfers the material through a discharge pipeline.
The system can be customized according to:
- Digester size
- Sludge thickness
- Required pumping distance
- Project conditions
How the Anaerobic Digester Cleaning Robot Works?
Step 1: Robot Deployment
The robot is placed into the anaerobic digester through an available access opening.
Step 2: Remote-Controlled Operation
Operators control the robot from outside the tank.
The crawler system moves toward areas with accumulated sediment.
Step 3: Sludge Loosening
The auger mechanism breaks and loosens settled sludge.
This improves material movement and prevents pipeline blockage.
Step 4: Sludge Transportation
The loosened sludge is pumped outside the digester for further processing or disposal.
Project Results: Improving Biogas Plant Maintenance Efficiency
After implementing the robotic cleaning solution, the biogas plant achieved:
Improved Digester Capacity
Removing accumulated sediment helped recover usable internal volume.
Safer Maintenance Operation
The remote-controlled system reduced the need for workers to enter confined spaces.
Reduced Cleaning Downtime
The robot provided a more flexible alternative compared with traditional shutdown-based cleaning methods.
More Reliable Biogas Operation
Regular digester cleaning helps maintain stable operation and supports long-term biogas production efficiency.
Why Choose Our Anaerobic Digester Cleaning Robot?
Designed for Difficult Sludge Conditions
The system is suitable for removing:
- Anaerobic digester sludge
- Manure slurry sediment
- Organic waste deposits
- Heavy tank-bottom accumulation
Remote-Controlled for Safer Operation
Operators can complete cleaning tasks without direct entry into hazardous environments.
Customized for Different Biogas Plants
Each anaerobic digestion system has different requirements.
We customize:
- Robot dimensions
- Pump capacity
- Pipeline length
- Control system
- Cleaning configuration
Manufacturing Capability and Engineering Support
We specialize in manufacturing robotic sludge removal equipment for:
- Biogas plants
- Livestock farms
- Wastewater facilities
- Industrial tanks
Our engineering team provides customized solutions based on:
- Tank structure
- Sediment characteristics
- Cleaning requirements
- Discharge distance
Before delivery, each machine is tested to ensure reliable operation in demanding environments.
Related Solution
For agricultural sludge cleaning applications, please visit:
Our agricultural sludge cleaning solutions are designed for:
- Manure storage tanks
- Slurry pits
- Livestock wastewater ponds
- Biogas-related sludge removal applications
FAQ about Anaerobic Digester Cleaning Robot
What is an anaerobic digester cleaning robot?
An anaerobic digester cleaning robot is a remote-controlled machine designed to remove accumulated sludge and sediment from biogas digesters without requiring manual entry.
Why do anaerobic digesters need cleaning?
Over time, heavy solids and sediment can accumulate at the bottom of digesters, reducing effective volume and affecting operational efficiency.
Can the robot remove thick sludge?
Yes. The crawler robot uses a sludge-breaking auger and pumping system to handle dense sediment conditions.
Is this robot suitable for farm biogas plants?
Yes. The system is suitable for agricultural biogas plants using manure slurry and other organic waste materials.
Conclusion
This Denmark biogas plant project demonstrates how an anaerobic digester cleaning robot can improve maintenance efficiency and safety.
By combining crawler mobility, remote control, sludge breaking technology, and pumping capability, the robotic system provides a practical solution for removing accumulated sediment from anaerobic digesters.
For biogas operators facing sludge buildup problems, robotic digester cleaning technology offers a safer and more efficient maintenance option.
