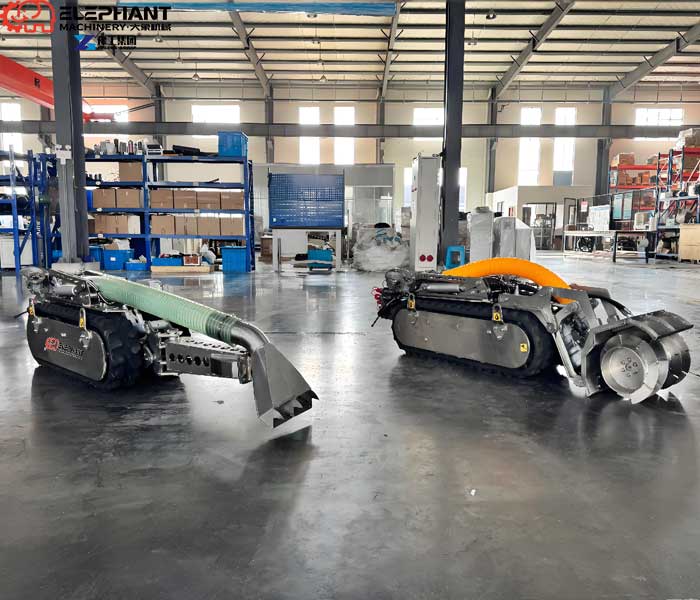

Elephant Machinery dredging robot is an advanced remote-controlled sludge removal solution designed for wastewater treatment plants, municipal pipelines, lakes, industrial sludge tanks, sedimentation basins, biogas tanks, and hazardous confined spaces. It enables safe cleaning without human entry, helping operators efficiently remove high-density sludge and sediment while reducing labor risks and improving operational safety.
Equipped with intelligent remote control, modular working tools, and powerful pumping systems, our dredging robots deliver reliable performance in complex sludge conditions. Customized configurations are available for different project requirements, including working depth, pump capacity, crawler system, and control options.
- No Human Entry Required
- Handles High-Solid Sludge & Sediment
- Pump Capacity Up To 250 m³/h
Dredging Robot Models & Specifications
Available dredging robot models range from compact YG450 to heavy-duty YG1200, designed for different sludge conditions and project scales.
| Parameter | YG450 | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | ≤1700 × 450 × 450 | 1500 × 500 × 650 | 1500 × 600 × 650 | 1600 × 700 × 650 | 1600 × 850 × 700 | 1650 × 960 × 750 | 1900 × 1200 × 750 |
| Applicable Manhole / Access | ≥600 mm opening | ≥600 mm opening | ≥600 mm opening | ≥700 mm opening | ≥800 mm opening | ≥900 mm opening | Large culvert / open access |
| Dredging Width (mm) | 450 | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–12 | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 3 | 4 | 4 | 4 | 4 or 6 |
| Pump Flow (m³/h) | 50 | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0-30 | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150 m) |
| Hydraulic Station Dimensions (mm) | 2000 × 1100 × 1500 (recommended) | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2120 × 1240 × 1200 |
| Main Motor Power (kW) | 11–15 kW | 18 | 18 | 22 | 22 | 22 | 45 kW (50 kW) / Diesel 76 kW (123 kW) |
| Hydraulic System Pressure (MPa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Custom / high-pressure system |
| Particle Size Capacity (mm) | ≤10–20 mm (soft sludge) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 20–30 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30 m/pack, high-pressure resistant |
| Control System | Wireless Remote Control | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 |
What Is a Dredging Robot?
A dredging robot is an unmanned robotic system designed to remove sludge, sediment, and deposits from challenging environments, including wastewater tanks, municipal pipelines, industrial facilities, sedimentation basins, lakes, and confined spaces.
Unlike traditional dredging methods, a remote-controlled dredging robot allows operators to clean hazardous or hard-to-access areas without direct entry. Equipped with crawler mobility, powerful pumping systems, cutting tools, and intelligent control technology, it provides a safer and more efficient solution for modern sludge removal operations.
As a professional dredging robot manufacturer, Elephant Machinery develops customized robotic dredging solutions for municipal wastewater, industrial cleaning, agricultural waste management, and other specialized applications.

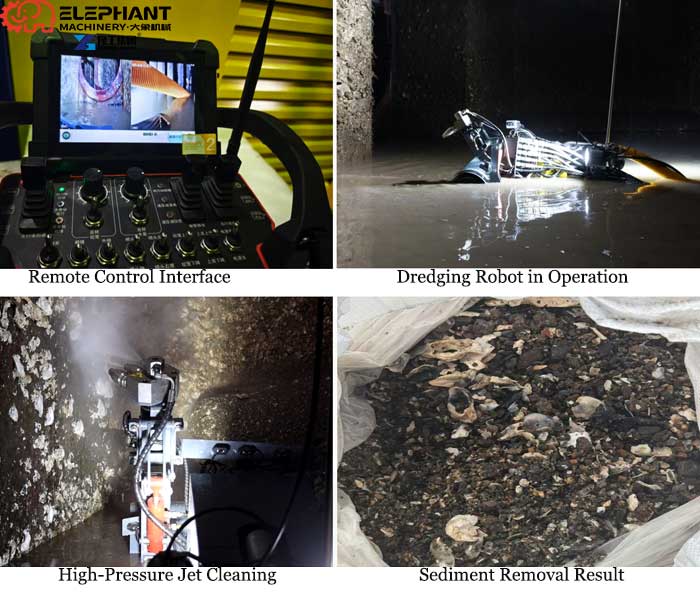

How Does a Dredging Robot Work?
The dredging robot works through four steps:
- Robot Deployment: The crawler robot enters the working area and moves to the target cleaning position.
- Sludge Loosening: Cutting tools or high-pressure water jets break up hardened sludge and sediment.
- Sludge Pumping: The slurry pump transfers the loosened material through discharge pipelines.

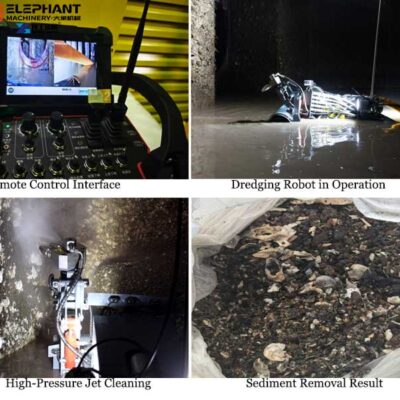

- Remote Monitoring: Operators control the robot through wireless remote control, cameras, and lighting systems.
Core Technologies & Key Advantages of Dredging Robot

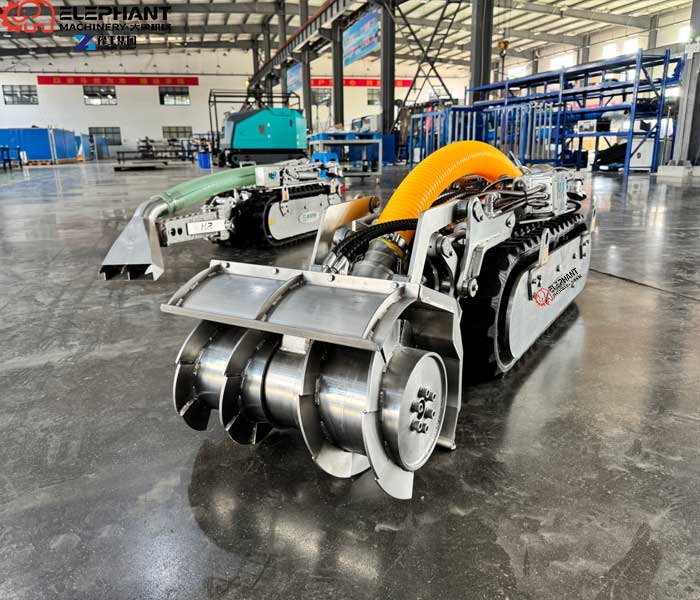

Sludge Breaking Attachments

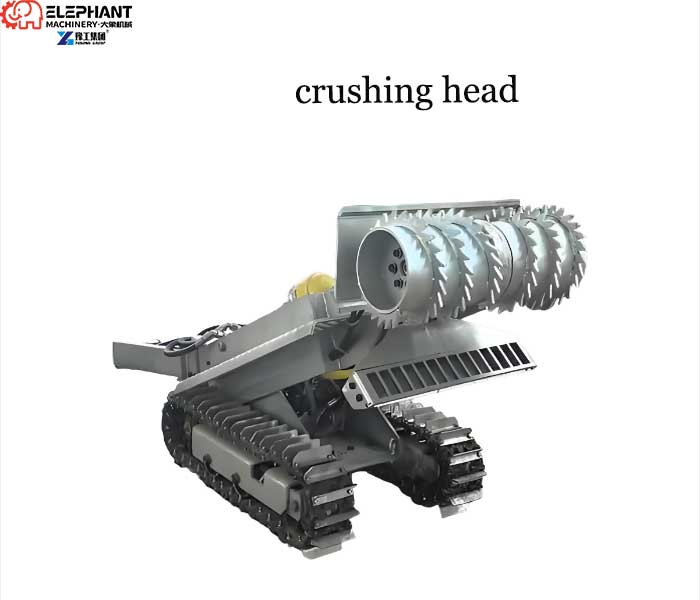

- Heavy-Duty Crushing Head: Designed for hard and compact materials such as hardened sludge, bricks, stones, and solid deposits. It provides stronger breaking capability for challenging dredging conditions.

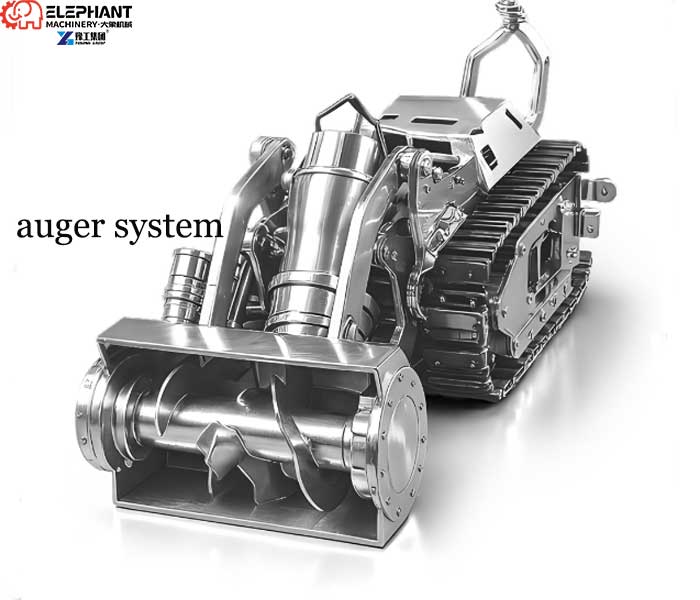

- Standard Cutting Head: Suitable for common sludge removal applications, including soft sludge, aquatic plants, algae, and oily sludge. It helps loosen and mix sediment before pumping for efficient cleaning.
Sludge Pumping and Transfer System

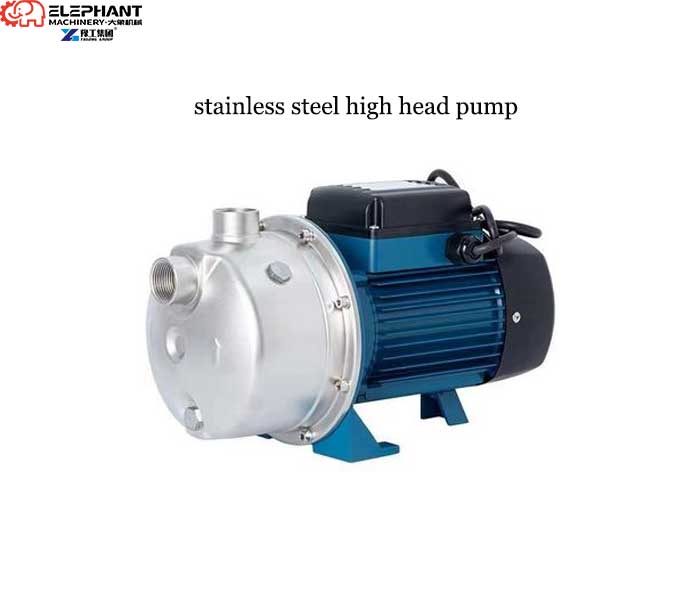

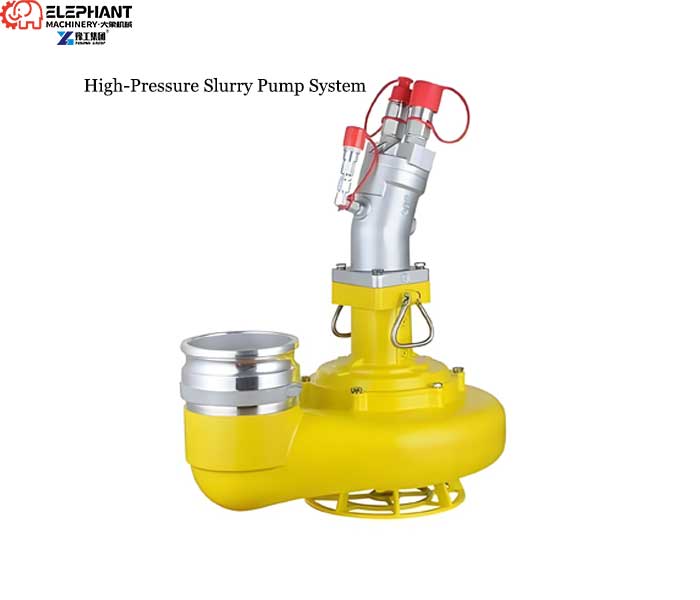

- High-Pressure Slurry Pump: Handles high-concentration sludge and sediment with strong pumping performance, ensuring efficient and reliable material transfer.
- Long-Distance Transfer Pump: Extends sludge discharge distance with additional pumping power, suitable for projects requiring remote sludge transportation.
Advanced Cleaning & Safety System

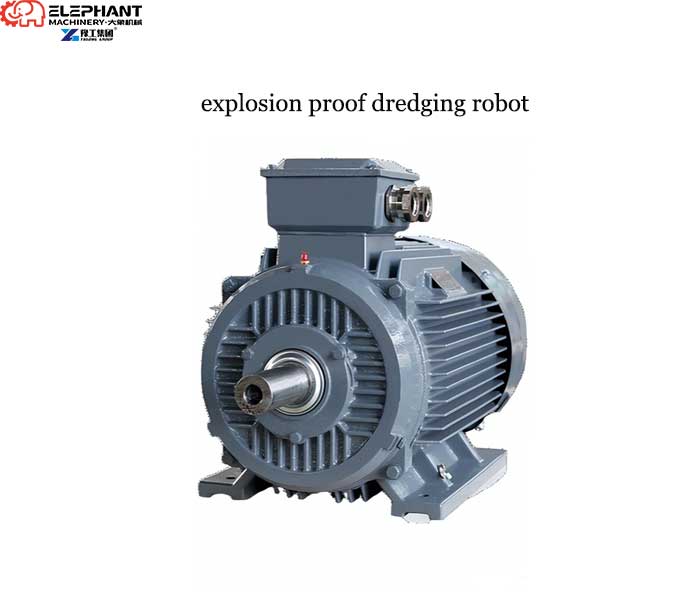

- Explosion-Proof Motor: Safe for oil tanks, chemical wastewater, and hazardous sludge environments. Anti-spark wiring, sealed motors, corrosion-resistant structure.

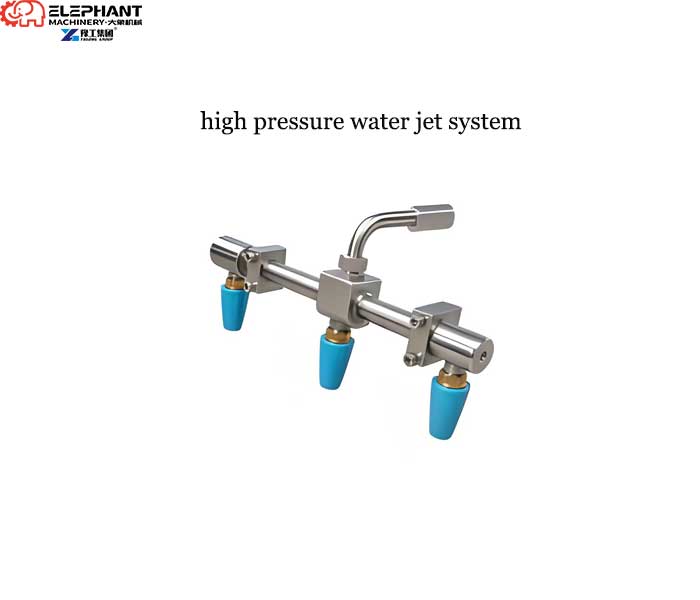

- High-Pressure Water Jet: Loosens hardened sludge and sediment with high-pressure water flow, improving dredging efficiency and reducing blockage risks.

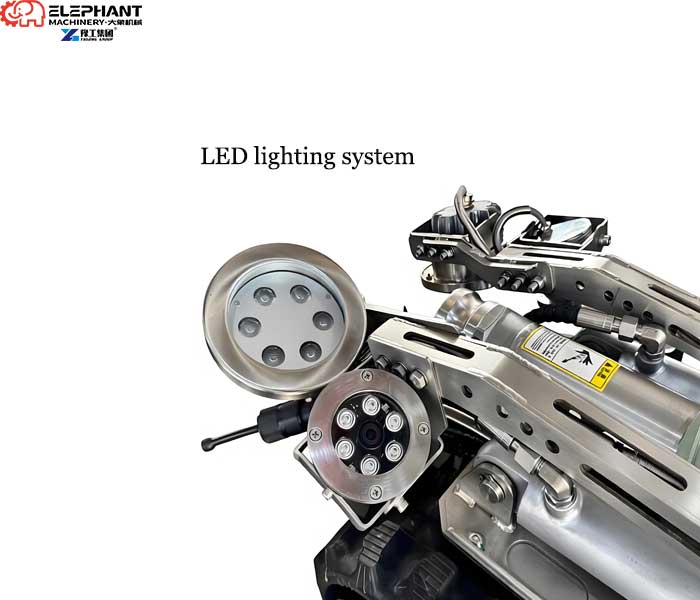

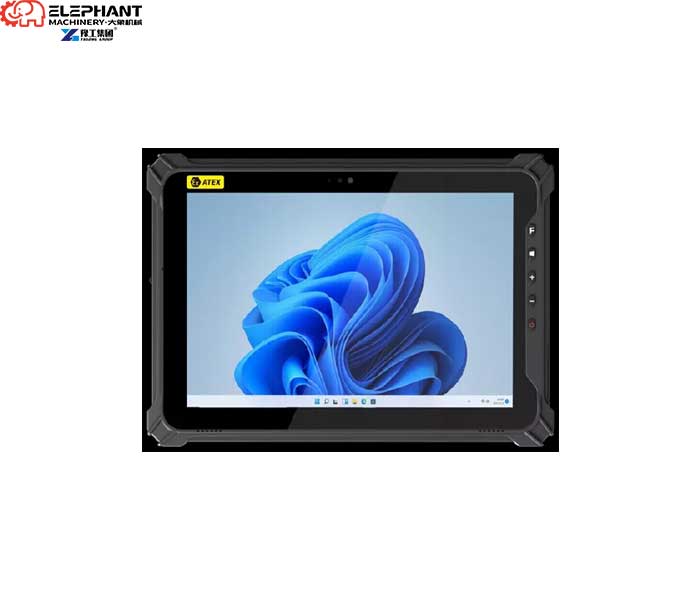

Remote Control and Monitoring
- Wireless remote + dual HD cameras and LED lighting for real-time monitoring.

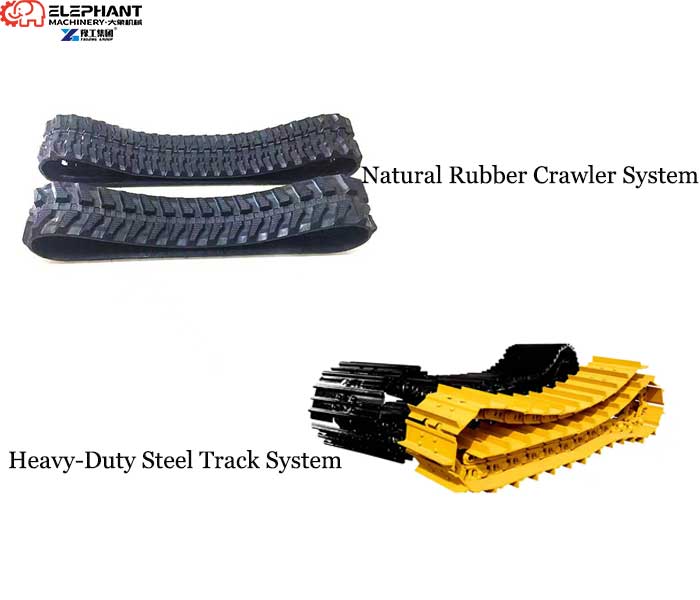

Flexible Crawler Mobility
- Steel or rubber crawler tracks ensure stable operation on muddy, uneven, and sloped surfaces.
- Modular design supports customized widths and attachments.

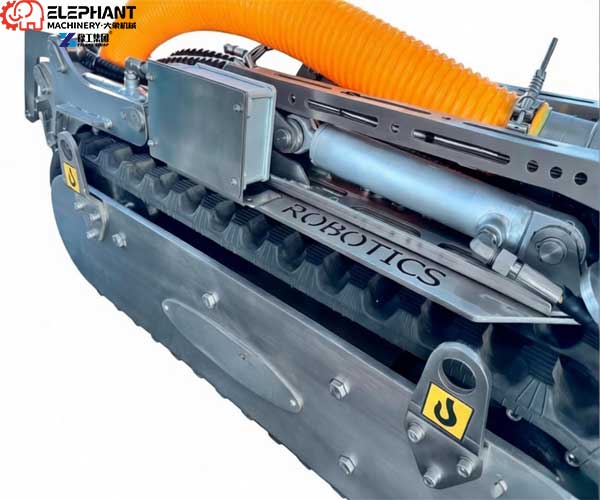

Durable Waterproof Design
- 304/316 stainless steel chassis, reinforced pump chamber.
- Temperature range -30°C to 90°C, IP68 waterproof, military-grade seals.
- Suitable for submerged tanks, pump stations, and deep sedimentation ponds (up to 20m).

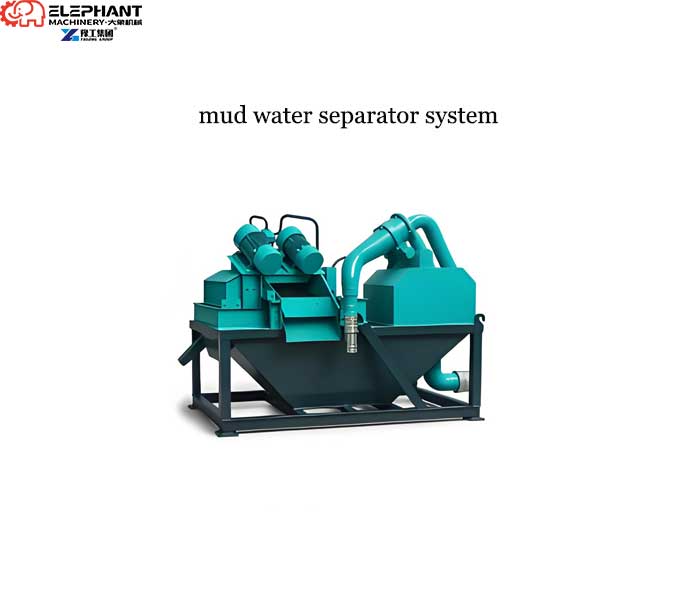

Efficient Mud-Water Separation System
- Advanced mud-water separator designed for continuous sludge solid-liquid separation during dredging operations.

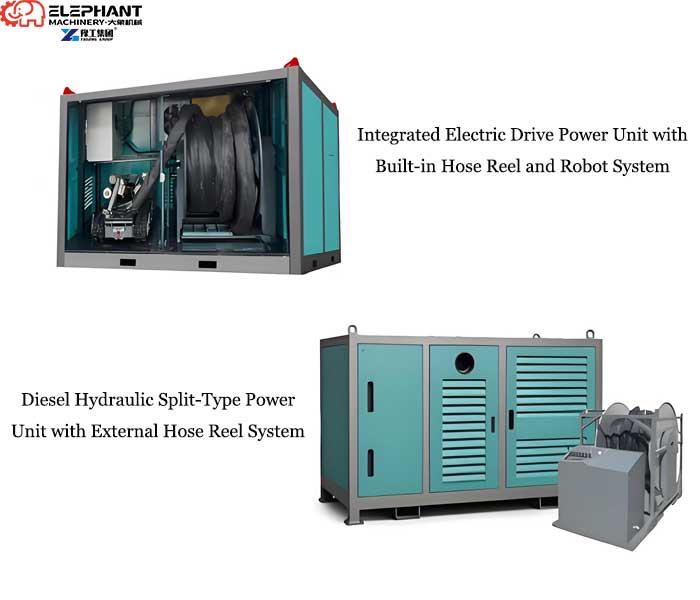

Intelligent Power Unit Selection
- Split-type diesel-hydraulic and integrated electric power systems available for flexible site conditions.
Select the Right Dredging Robot Model for Your Application
Every dredging project has unique challenges, including limited access, different sludge characteristics, and complex working environments. YG Dredging Robot provides multiple models to match different cleaning requirements, from confined spaces to large-scale industrial dredging operations.
| YG450 Compact Dredging Robot | Confined spaces, municipal pipelines, small tanks, and light sludge removal projects | Compact design, suitable for ≥600mm manhole access |
| YG600 Medium Dredging Robot | Wastewater treatment plants, sedimentation basins, ponds, and general sludge cleaning projects | Balanced performance with 100 m³/h pumping capacity and flexible operation |
| YG900 Heavy-Duty Dredging Robot | Industrial tanks, reservoirs, mining tailings ponds, and large-scale dredging projects | High-capacity sludge removal for heavy-duty applications |
| YG1200 Large Dredging Robot | Large culverts, reservoirs, and high-volume dredging operations | Up to 250 m³/h flow capacity and long-distance sludge transfer |
With flexible configurations and customized designs, YG Dredging Robot helps customers select the right solution based on access conditions, sludge characteristics, pumping requirements, and working environment. It enables safe and efficient sludge removal without requiring workers to enter hazardous areas.
Applications of Dredging Robots
Elephant Machinery dredging robots are widely used in sludge removal and sediment cleaning projects where traditional methods are inefficient or unsafe.

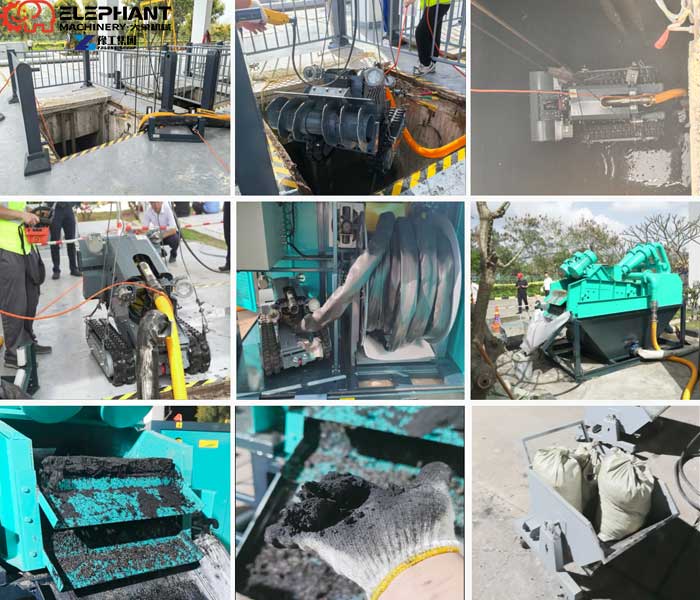

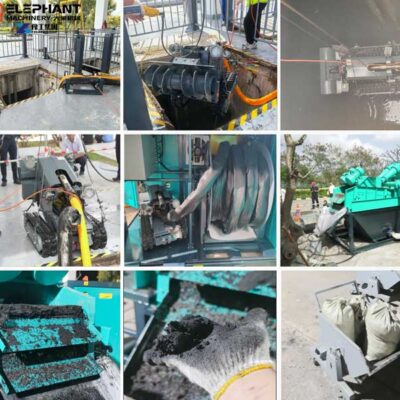

1.Municipal & Wastewater Systems

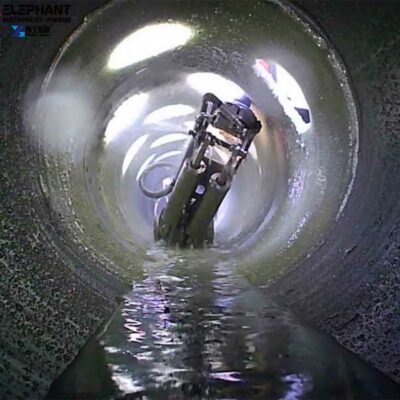

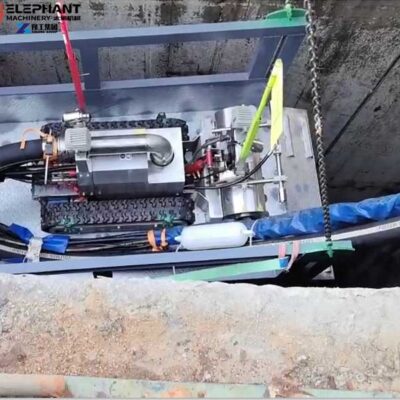

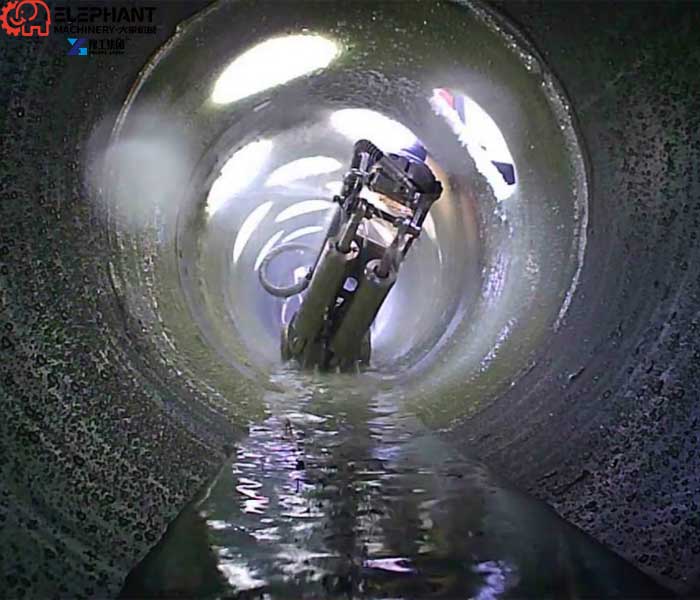

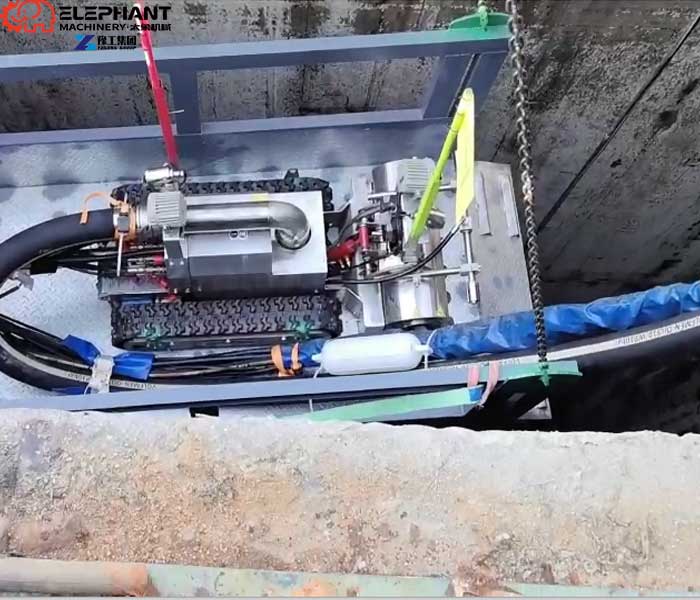

Used in sewage treatment tanks, sewer pipelines, culverts, and pump stations.
Suitable for narrow and confined underground environments with limited access.
2.Industrial Cleaning

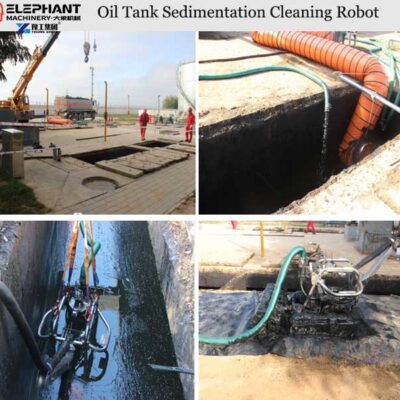

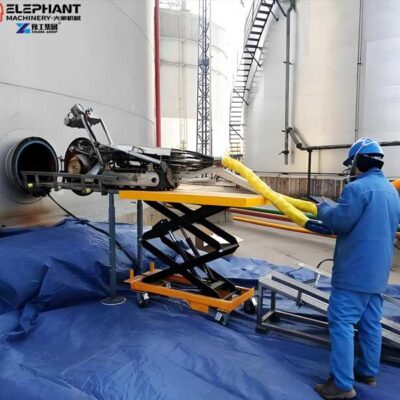

Applied in oil tanks, chemical wastewater systems, refineries, and industrial sludge tanks.
Supports safe operation in hazardous and high-contamination environments.
3.Environmental Projects

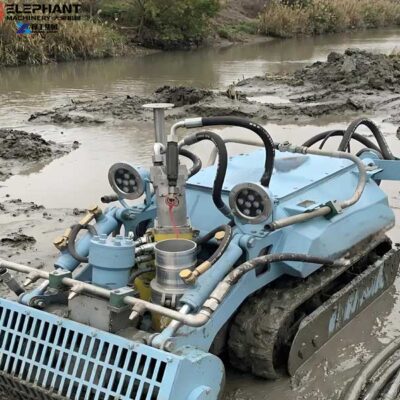

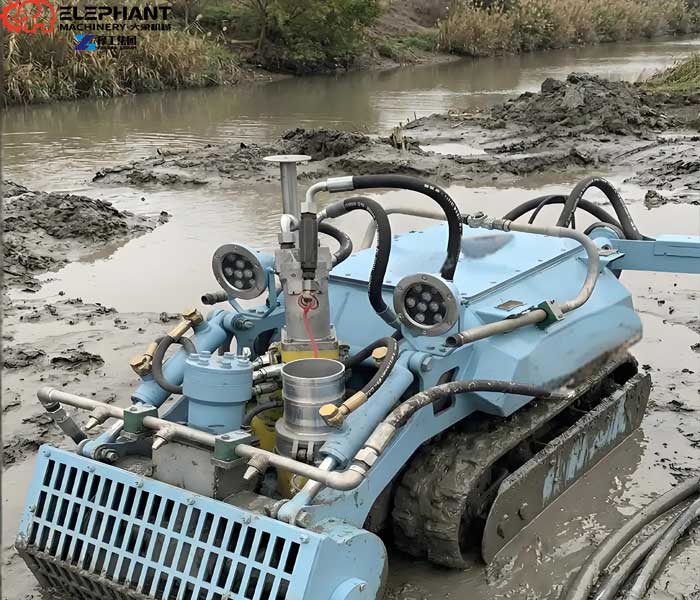

Used for lake cleaning, lagoon maintenance, and reservoir restoration.
Helps improve water flow and recover storage capacity.
4.Agriculture & Livestock Waste Management
Used in farm manure pits, biogas slurry tanks, and livestock waste storage ponds.
Improves sanitation and enables safe, efficient sludge removal in farm environments.
5.Energy & Mining (Heavy Industry)

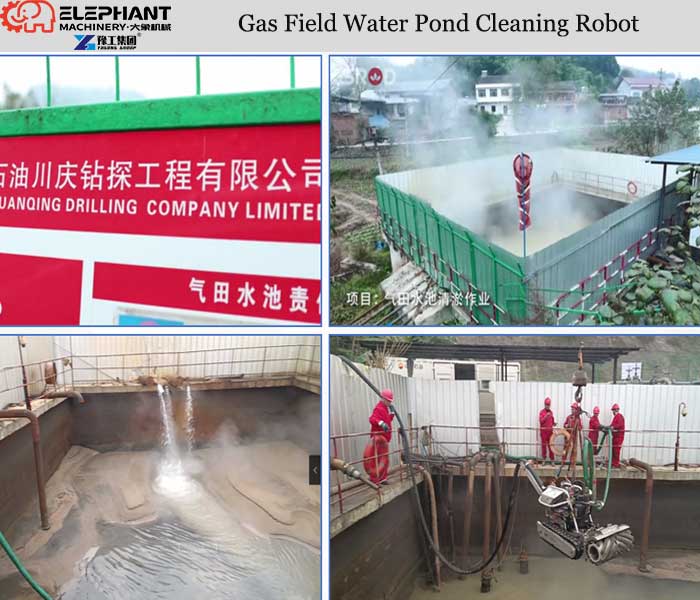

Applied in tailing ponds, mining sedimentation tanks, and industrial settling basins.
Designed for high-solid, abrasive, and heavy sludge conditions in harsh working environments.
6.Special Applications
Including nuclear facilities, submerged pump wells, and deep sedimentation zones.
Enables remote operation in high-risk or inaccessible environments.
Key Value
Across all applications, the dredging robot ensures safe remote operation, efficient sludge removal, and reduced downtime in complex working conditions.
These dredging robots are widely used in complex sludge environments where manual cleaning is unsafe or inefficient.
Project Cases
YG Dredging Robot has been successfully applied in wastewater treatment, lake restoration, and agricultural sludge cleaning projects worldwide, providing safe and efficient solutions for different dredging challenges.

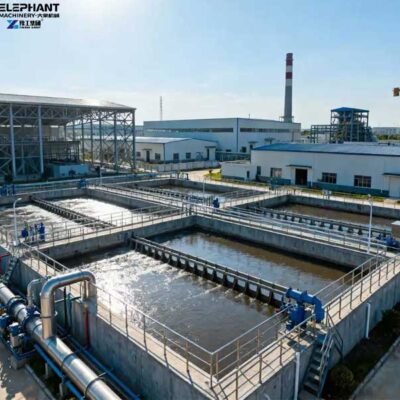

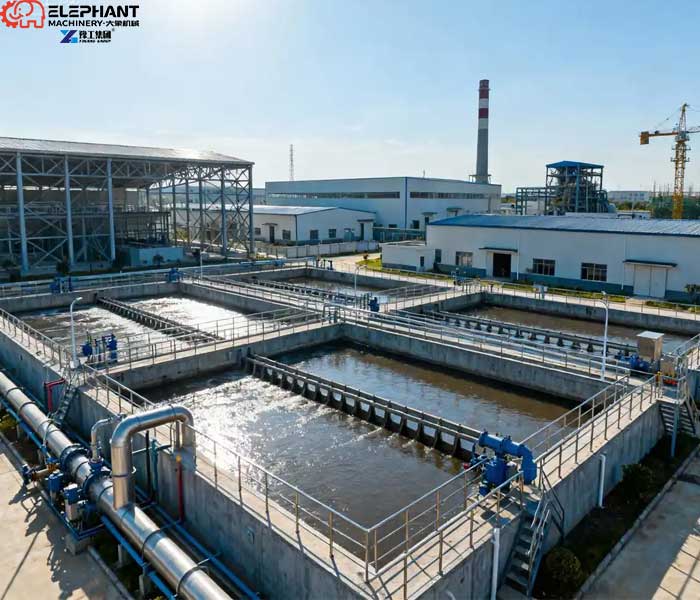

1.UAE Wastewater Treatment Plant Sludge Removal Project
A wastewater treatment plant in the UAE used YG Dredging Robot to remove accumulated sludge from sedimentation tanks where traditional cleaning methods were inefficient and risky. The remote-controlled solution improved cleaning efficiency while reducing personnel exposure to hazardous environments.
2.Spain Landscape Lake Dredging Project
A landscape lake in Spain required sediment removal to improve water circulation and maintain the water environment. The compact dredging robot provided an efficient underwater cleaning solution with minimal impact on the surrounding landscape.
3.Netherlands Dairy Farm Manure Lagoon Cleaning Project
A dairy farm in the Netherlands adopted YG Dredging Robot for manure lagoon sludge removal. The automated cleaning system helped reduce manual labor, improve operational safety, and provide an efficient solution for livestock waste management.
Custom Engineering Solutions
Elephant Machinery provides customized dredging robot solutions based on sludge conditions, access limitations, and project requirements.
Customization options include:
- Working depth and tank/pond dimensions
- Pump capacity and discharge distance
- Steel or rubber crawler configuration
- Explosion-proof design for hazardous environments
- Electric or diesel-hydraulic power systems
- Remote control, camera, and sensor integration
From confined tanks to large-scale industrial dredging projects, our engineering team designs the right configuration for each application.
Dredging Robot Price Factors
The price of a dredging robot depends on the project requirements, working environment, and customized configuration. Different applications require different robot sizes, pumping capacities, and safety features.
The main factors affecting dredging robot cost include:
- Robot size and working capacity
- Pump flow rate and sludge transfer distance
- Working depth and operating environment
- Explosion-proof requirements for hazardous areas
- Remote control, camera, and automation systems
- Customized crawler, power, or mobility configurations
For example, a sludge cleaning robot for wastewater treatment may require different specifications compared with a large industrial dredging robot used for reservoirs or mining applications. Elephant Machinery provides customized solutions based on actual site conditions and cleaning requirements.
FAQ – Dredging Robot Solutions
Q1: Can dredging robots work in explosive or hazardous environments?
Yes. Our explosion-proof dredging robots are designed for hazardous environments such as oil tanks, chemical wastewater facilities, biogas plants, and industrial sludge treatment areas. With explosion-proof motors, safety protection systems, and remote operation capabilities, they allow operators to remove sludge without entering dangerous areas.
Q2: Can a dredging robot remove thick sludge and compacted sediment?
Yes. The sludge cleaning robot is designed to handle various difficult sludge conditions, including thick sludge, settled sediment, and compacted deposits. Equipped with optional auger systems, high-pressure water jets, and powerful slurry pumps, it can effectively loosen, mix, and transport high-solid sludge.
Q3: Can dredging robots operate in narrow or confined spaces?
Yes. Compact crawler dredging robots are specially developed for limited-access areas such as storage tanks, sewage tanks, culverts, pipelines, and underground facilities. Their compact structure and remote control system allow safe cleaning operations where traditional equipment or manual workers cannot easily access.
Q4: What customization options are available for dredging robots?
We provide customized robotic dredging solutions based on different project requirements. Available options include crawler size, power system, explosion-proof configuration, camera monitoring system, lighting system, pump capacity, discharge pipeline length, and control methods. Our engineering team can design a suitable solution according to your sludge type and working environment.
Q5: How far can sludge be transported by a dredging robot?
The sludge transportation distance depends on several factors, including sludge concentration, pipeline diameter, pump capacity, elevation difference, and site conditions. Elephant Machinery dredging robots can be equipped with high-performance sludge transfer pumps and long-distance discharge systems to transport removed sludge to designated collection areas. For projects requiring extended discharge distances, additional pumping units can be integrated to improve conveying performance.

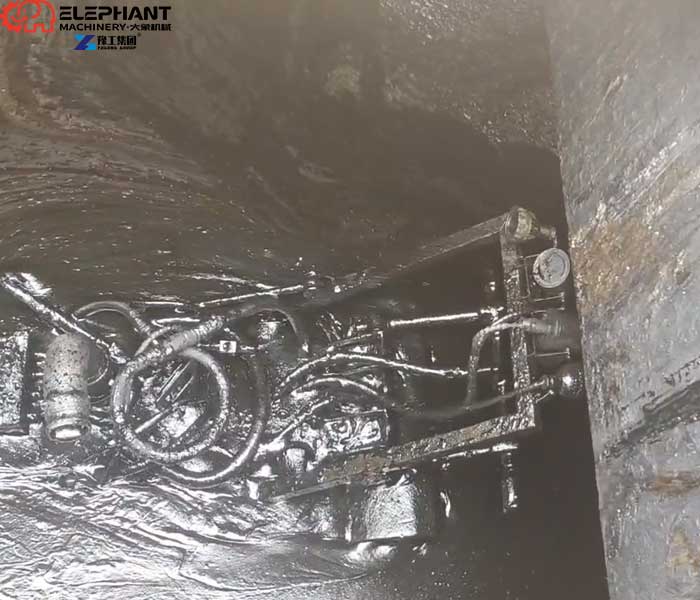

Q6: Can the dredging robot work underwater?

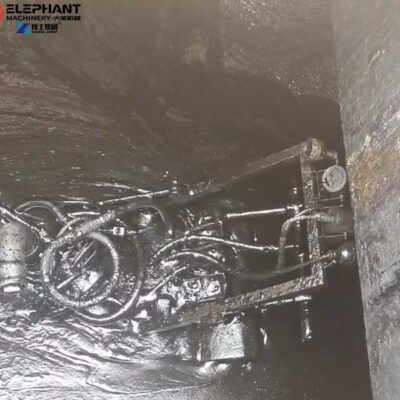

Yes. The underwater dredging robot is designed for submerged applications such as wastewater tanks, reservoirs, lakes, pump stations, and industrial sedimentation ponds. With waterproof protection, underwater cameras, lighting systems, remote control, and durable crawler tracks, the robot can operate reliably underwater while allowing operators to monitor the cleaning process from a safe distance.
Q7: What types of sludge can a dredging robot remove?
The sludge cleaning robot can remove different types of sludge and sediment, including municipal sewage sludge, industrial sludge, oily sludge, biological sludge, sand deposits, and mixed sediments. Depending on the application, the robot can be equipped with different attachments, such as cutting heads, augers, high-pressure water systems, and slurry pumps to improve cleaning efficiency.
Q8: Do you provide customized dredging robot solutions?
Yes. Elephant Machinery provides complete custom dredging robot solutions for wastewater treatment plants, industrial tanks, biogas facilities, agriculture projects, lakes, reservoirs, and other challenging environments. Our engineers customize the robot according to working depth, sludge characteristics, access limitations, transportation distance, explosion-proof requirements, pump capacity, and control systems.
Q9: How much does a dredging robot cost?
The cost of a dredging robot depends on the robot model, pump capacity, working environment, discharge distance, and customization requirements. Compact models for confined spaces usually have different configurations compared with heavy-duty robots for industrial or large-scale dredging projects. Elephant Machinery provides customized solutions based on your specific sludge conditions and project requirements.
Why Choose Elephant Machinery Dredging Robots?
Elephant Machinery, a professional manufacturer, has been focusing on dredging equipment and robotic cleaning systems for more than 20 years. We are committed to delivering reliable, intelligent, and customized dredging solutions for global customers.
Our Advantages:
- Modern factories with strict production management and quality control
- China EX explosion-proof certified & CE certified
- Over 30 master’s degree engineers and technical specialists
- 20+ years of export experience with customers across Europe, North America, South America, Asia, Africa, and the Middle East
- Dedicated logistics and order tracking team ensuring smooth delivery
- 24/7 online technical support and after-sales service
- Strong OEM/ODM customization capability for global projects
Dredging Robot in Elephant Machinery
Elephant Machinery’s dredging robots combine intelligent control, explosion-proof safety design, and powerful sludge removal capability to deliver a complete solution for modern dredging challenges. From underwater dredging robots and crawler dredging robots to oil tank cleaning robots and robotic lake cleaners, we provide highly customizable systems designed for efficiency, safety, and long-term performance.
Partner with Elephant Machinery to upgrade your dredging operations with smarter, safer, and more efficient robotic solutions.
