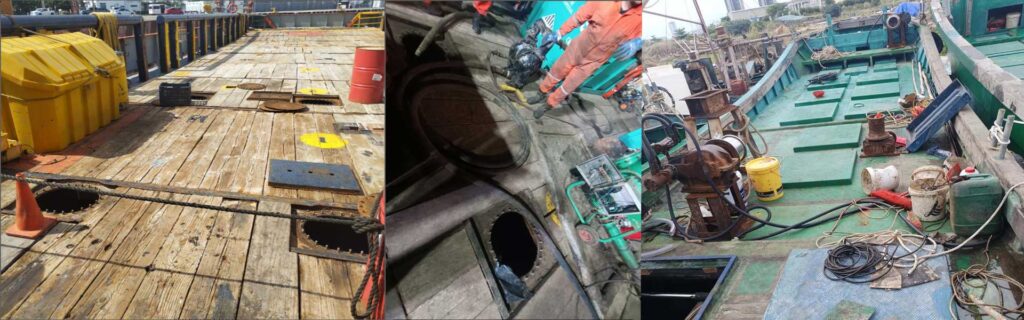

Intelligent Dredging Robot for Ship Ballast & Enclosed Marine Tanks
Industry Overview & Key Challenges
Marine vessels such as cargo ships, oil tankers, and offshore service vessels contain multiple enclosed compartments including ballast tanks, cargo holds, fuel oil tanks, and bilge systems.
Over time, heavy sludge, oil residues, sediment, and marine corrosion waste accumulate inside these confined spaces, severely affecting vessel stability, cargo efficiency, and operational safety.
Due to the fully enclosed structure of ship tanks and strict maritime safety regulations, manual entry cleaning is highly restricted and often requires long docking downtime, increasing operational cost.
Key challenges include:

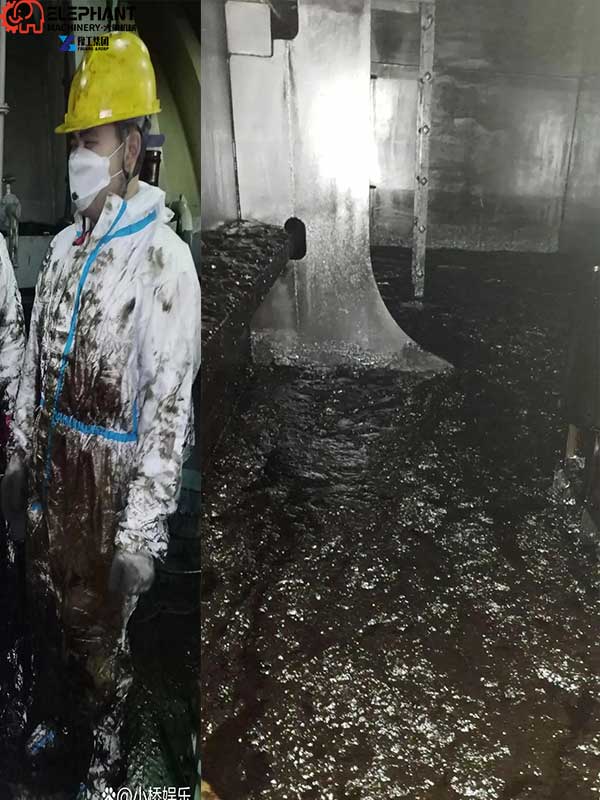

- Heavy oil sludge and sediment accumulation in ballast and cargo tanks
- Extremely confined and enclosed working environments
- Strict maritime safety restrictions for human entry
- High cost of ship docking and downtime
- Difficulty cleaning irregular internal tank structures
Why Traditional Cleaning Methods Fail?
Conventional ship tank cleaning methods such as manual entry, chemical flushing, or high-pressure washing systems face major limitations:
- Requires full vessel shutdown and docking
- High safety risk in enclosed and oxygen-limited tanks
- Inefficient removal of thick oil sludge and sediment layers
- Limited accessibility inside complex tank structures
- High labor and operational cost in marine environments
👉 As a result, ship operators are shifting toward remote, non-entry marine sludge removal systems.
Technical Solution: Enclosed Marine Dredging Robot System
Elephant Machinery provides a marine dredging robot system designed specifically for ballast tanks, cargo holds, fuel tanks, and other enclosed ship compartments.
The system is deployed through existing tank access points without requiring human entry or structural modification.
Once inside the tank, the dredging robot performs a continuous enclosed cleaning workflow:
1. Heavy sludge breaking & loosening
The system breaks down compacted oil sludge, sediment, and marine residues accumulated in ballast and cargo tanks.
2. Confined-space mechanical dredging
A tracked mobility system allows the robot to navigate uneven tank floors and move through narrow internal ship structures.
3. Continuous suction & closed-loop discharge
Loosened sludge is immediately extracted through a sealed pumping system and transported to external collection units without leakage.
👉 This ensures safe and efficient cleaning in fully enclosed marine environments without human entry.
Key Engineering Advantages for Marine Applications
To meet the strict requirements of ship maintenance and marine safety standards, the system is equipped with specialized capabilities for enclosed tank environments.
1. Confined Space Navigation Capability
- Compact tracked structure for narrow tank access
- Stable movement on uneven ballast tank floors
- Suitable for cargo holds and irregular marine compartments
👉 Ensures full coverage inside complex ship tank structures
2. Heavy Oil Sludge Breaking System
- Designed for high-viscosity oil sludge and sediment layers
- Effective in ballast tanks and fuel oil residue zones
- Prevents clogging during thick sludge operation
👉 Ensures continuous breakdown of marine deposits
3. Sealed Marine Sludge Extraction System
- Closed-loop pumping to prevent leakage and contamination
- Suitable for hazardous oil residues in ship tanks
- Stable transfer to external collection systems
👉 Ensures compliance with marine environmental regulations
4. Remote Visual Operation System
- Dual-camera real-time monitoring inside dark tank environments
- LED lighting for enclosed compartments
- Full remote control from safe external location
👉 Eliminates need for human entry into confined marine spaces
5. Low-Downtime Cleaning Capability
- No need for full ship disassembly or tank reconstruction
- Operates during scheduled maintenance windows
- Reduces vessel docking time significantly
👉 Minimizes operational downtime and maintenance cost
Application Scenarios
- Ship ballast tank sludge removal
- Cargo hold sediment cleaning

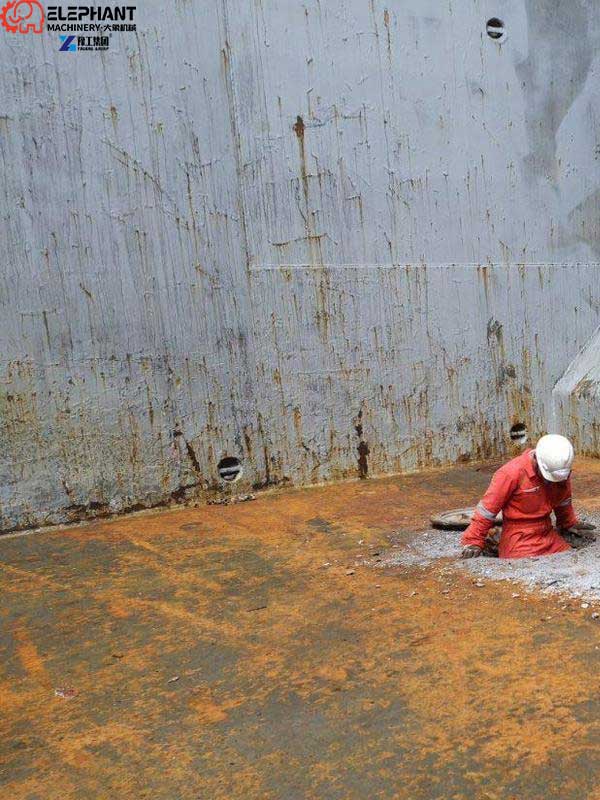

- Marine fuel oil tank sludge dredging

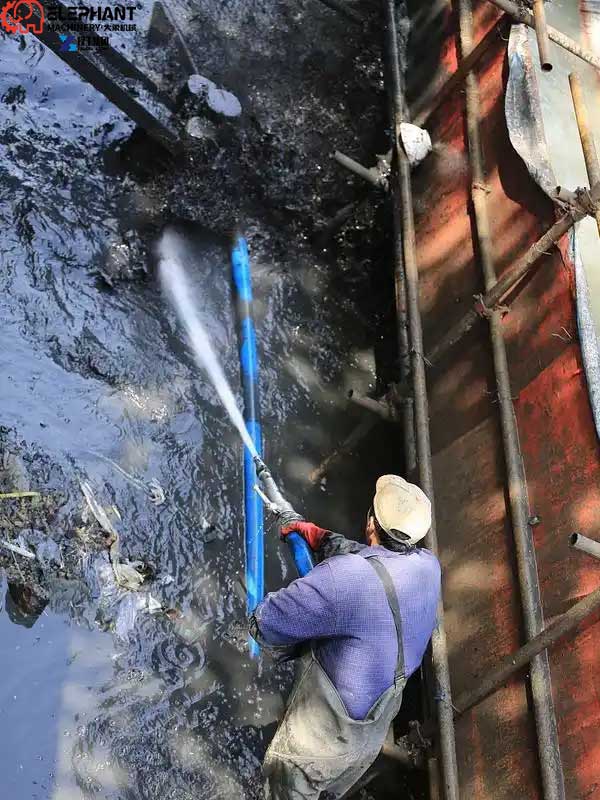

- Bilge system sediment removal
- Offshore vessel enclosed tank cleaning
- Ship maintenance and repair dry-dock cleaning systems
Conclusion
The Elephant Machinery marine dredging robot system provides a safe, efficient, and fully remote solution for sludge removal in ship ballast tanks and enclosed marine compartments.
By eliminating human entry risks and enabling continuous closed-loop dredging, it significantly reduces ship maintenance downtime while improving operational safety and cleaning efficiency in marine environments.
