Remote-Controlled Robot Solution for Dairy Farm Manure Storage Tank Cleaning
A dairy farm in the Netherlands contacted us to find a safer and more efficient solution for cleaning accumulated sludge inside its manure storage tank.

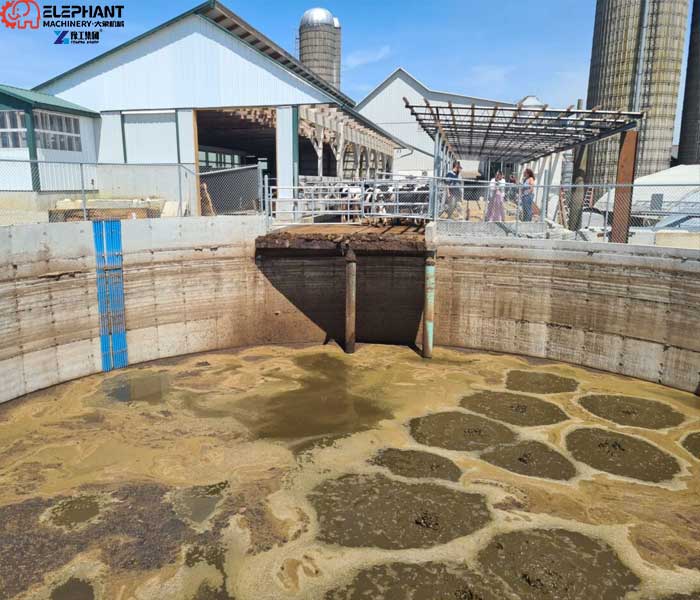

During long-term operation, heavy organic solids and manure sediment gradually settled at the bottom of the storage tank. The accumulated sludge reduced the effective storage capacity and made regular manure management more difficult.
Traditional cleaning methods required completely emptying the tank, using additional equipment, or sending workers into a hazardous environment. These methods increased downtime, labor costs, and safety risks.
After understanding the customer’s tank structure and sludge conditions, our engineering team provided a customized manure storage tank cleaning robot solution.

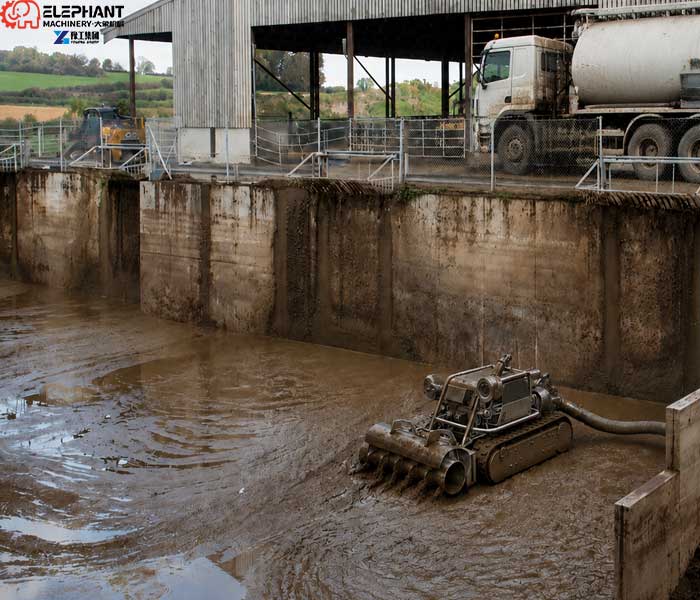

The remote-controlled crawler robot was designed to enter the manure storage tank, break up settled sludge, and pump the removed material outside through a discharge pipeline.
This robotic cleaning system helped the dairy farm maintain its manure storage facility with less downtime and improved operational safety.
Manure Storage Tank Cleaning Robot Parameters
| Parameter | YG450 | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | ≤1700 × 450 × 450 | 1500 × 500 × 650 | 1500 × 600 × 650 | 1600 × 700 × 650 | 1600 × 850 × 700 | 1650 × 960 × 750 | 1900 × 1200 × 750 |
| Applicable Manhole / Access | ≥600 mm opening | ≥600 mm opening | ≥600 mm opening | ≥700 mm opening | ≥800 mm opening | ≥900 mm opening | Large culvert / open access |
| Dredging Width (mm) | 450 | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–12 | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 3 | 4 | 4 | 4 | 4 or 6 |
| Pump Flow (m³/h) | 50 | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0-30 | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150 m) |
| Hydraulic Station Dimensions (mm) | 2000 × 1100 × 1500 (recommended) | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2120 × 1240 × 1200 |
| Main Motor Power (kW) | 11–15 kW | 18 | 18 | 22 | 22 | 22 | 45 kW (50 kW) / Diesel 76 kW (123 kW) |
| Hydraulic System Pressure (MPa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Custom / high-pressure system |
| Particle Size Capacity (mm) | ≤10–20 mm (soft sludge) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 20–30 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30 m/pack, high-pressure resistant |
| Control System | Wireless Remote Control | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 |

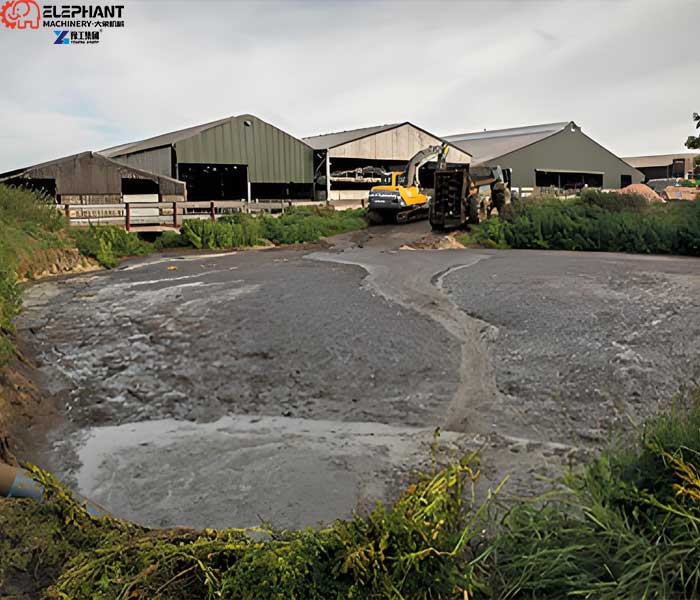

Project Background: Sludge Accumulation Inside Manure Storage Tank
Modern dairy farms rely on manure storage systems to collect and temporarily store animal waste before further treatment or utilization.
During continuous operation, manure slurry naturally separates inside the storage tank:
- Liquid remains in the upper area
- Organic solids settle at the bottom
- Dense sludge layers gradually accumulate
Over time, this sediment can cause:
- Reduced storage capacity
- Difficult manure pumping
- Increased maintenance requirements
- Uneven mixing performance
For this Netherlands dairy farm, the main challenge was removing accumulated manure sludge from the bottom of the storage tank without interrupting normal farm operations.
Challenges of Traditional Manure Storage Tank Cleaning
Cleaning manure storage tanks is more difficult than ordinary pond cleaning because of the tank structure and working environment.
1. Complete Tank Emptying Is Time-Consuming
Traditional cleaning usually requires:
- Removing stored manure slurry
- Waiting for safe access conditions
- Using additional equipment
This process can significantly affect farm operation schedules.
2. Manual Entry Creates Safety Risks
Manure storage tanks may contain harmful gases, including:
- Hydrogen sulfide
- Ammonia
- Methane
Entering confined manure storage spaces creates potential safety hazards.
A remote-controlled cleaning solution reduces the need for workers to enter the tank.
3. Thick Bottom Sludge Is Difficult to Pump
After long-term storage, manure sediment becomes compact and difficult to remove with ordinary pumps.
A specialized sludge removal system is required to:
- Break compact sediment
- Improve material flow
- Transport sludge efficiently
Customized Manure Storage Tank Cleaning Robot Solution
Based on the customer’s requirements, our engineers designed a robotic cleaning system including:
Remote-Controlled Crawler Robot
The crawler design allows stable movement inside the manure storage tank.
Key features:
- Remote operation
- Stable movement on muddy surfaces
- Compact structure for confined spaces
- Reduced labor requirements
Sludge Breaking Auger System
The bottom sludge inside manure storage tanks is often dense and sticky.
The front auger system helps:
- Loosen hardened manure sediment
- Break large sludge deposits
- Improve pumping efficiency
High-Efficiency Sludge Pumping System
After the sludge is loosened, the pumping system transports it through a discharge pipeline.
The system can be customized according to:
- Farm conditions
- Sludge thickness
- Pipeline length
- Required pumping distance
Working Process of the Manure Storage Tank Cleaning Robot
Step 1: Robot Installation
The robot is lowered into the manure storage tank through the access opening.
Step 2: Remote-Controlled Cleaning
The operator controls the robot from outside the tank.
The crawler robot moves toward sludge accumulation areas.
Step 3: Sludge Loosening
The auger system breaks and mixes settled manure sludge.
This improves material mobility and prevents pipeline blockage.
Step 4: Sludge Transportation
The loosened sludge is pumped outside the tank for further treatment or agricultural utilization.
Project Results: Improving Dairy Farm Manure Management Efficiency
After applying the robotic cleaning solution, the dairy farm achieved several improvements:
Restored Storage Capacity
Removing accumulated bottom sludge helped recover usable tank volume.
Safer Cleaning Operation
The farm reduced the need for manual entry into manure storage areas.
Reduced Maintenance Downtime
The robotic system minimized preparation work compared with traditional tank cleaning methods.
More Efficient Waste Management
Regular manure storage tank cleaning supports more stable livestock waste management operations.
Why Choose Our Manure Storage Tank Cleaning Robot?
Designed for Difficult Agricultural Sludge Conditions
The robot is developed for removing:
- Manure sediment
- Organic sludge
- Livestock waste deposits
- Slurry tank accumulation
Remote Operation Improves Safety
Operators can complete cleaning tasks without direct contact with hazardous storage environments.
Customized According to Farm Requirements
Different farms have different storage systems.
We customize:
- Robot size
- Pump capacity
- Pipeline length
- Control system
- Cleaning configuration
About Our Robotic Sludge Cleaning Equipment Manufacturing
We are a professional manufacturer specializing in robotic sludge removal equipment for agricultural and industrial applications.
Our factory provides complete support from equipment design to production.
Engineering Design
Our engineers analyze:
- Storage tank dimensions
- Sludge characteristics
- Cleaning requirements
- Working environment
to develop a suitable solution.
Customized Manufacturing
We provide customized equipment for:
- Dairy farms
- Livestock farms
- Biogas plants
- Wastewater facilities
Quality Testing Before Delivery
Each machine is inspected before shipment to ensure:
- Stable mechanical performance
- Reliable operation
- Long service life
Related Solution
For broader agricultural sludge cleaning applications, explore our:
Farm Sludge Cleaning Robot
The solution covers:
- Agricultural sludge removal applications
- Manure storage tanks
- Slurry pits
- Livestock wastewater ponds
FAQ About Manure Storage Tank Cleaning Robot
1.What is a manure storage tank cleaning robot?
A manure storage tank cleaning robot is a remote-controlled machine designed to remove accumulated sludge and sediment from livestock manure storage systems.
2.Can this robot clean thick manure sludge?
Yes. The auger system breaks compact sludge, while the pumping system transfers the removed material outside the tank.
3.Does the manure tank need to be emptied before cleaning?
No. The robot can work directly inside the storage tank, reducing downtime and cleaning preparation.
4.Is this the same as a barn manure cleaning robot?
No. A barn manure cleaning robot removes fresh manure from floors.
A manure storage tank cleaning robot removes settled sludge from storage facilities.
Conclusion
This Netherlands dairy farm project demonstrates how a manure storage tank cleaning robot can improve agricultural waste management efficiency.
By combining crawler mobility, remote control, sludge breaking technology, and pumping capability, the robotic system provides a safer and more efficient alternative to traditional manure tank cleaning methods.
For dairy farms and livestock facilities dealing with accumulated manure sediment, robotic cleaning technology offers a reliable long-term solution.
