Pump stations can accumulate sludge, sediment, sand, and other settled materials at the bottom of wet wells and collection chambers. Over time, these deposits may reduce effective capacity and affect normal pumping operations.

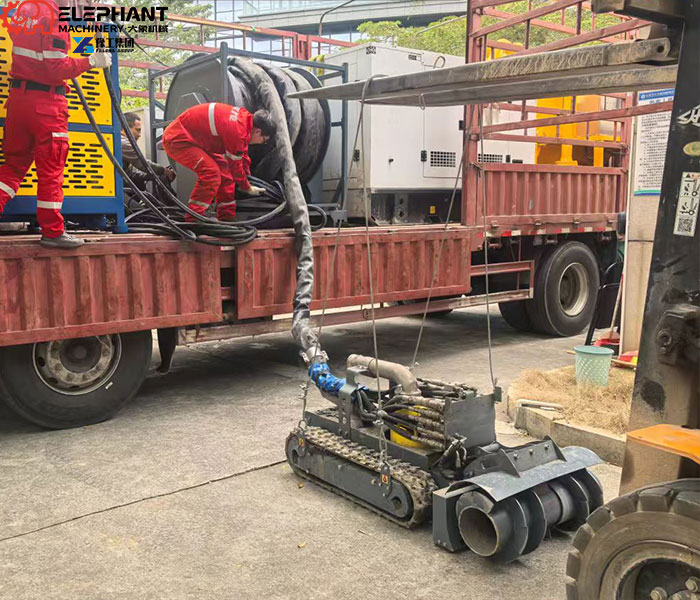

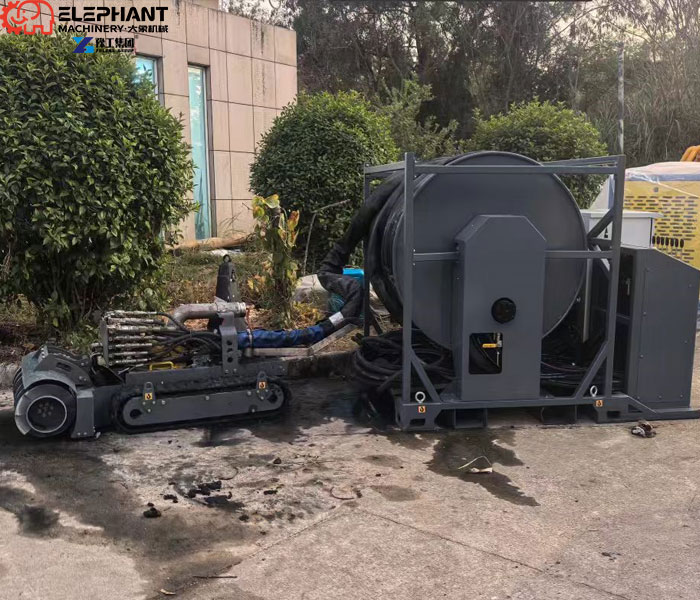

The Pump Station Sludge Removal Robot provides a remote-controlled solution for cleaning suitable pump stations and confined water facilities. The compact dredging robot can be lowered through an access opening, operated from the surface, and combined with a sludge transfer pump to remove pumpable sludge without requiring workers to enter the operating area.
Remote-Controlled Sludge Removal for Pump Stations
Many pump stations have deep wet wells, narrow manholes, and limited internal working space. In some applications, the entrance may have an approximate diameter of 600 mm or more, depending on the robot model and lifting arrangement.

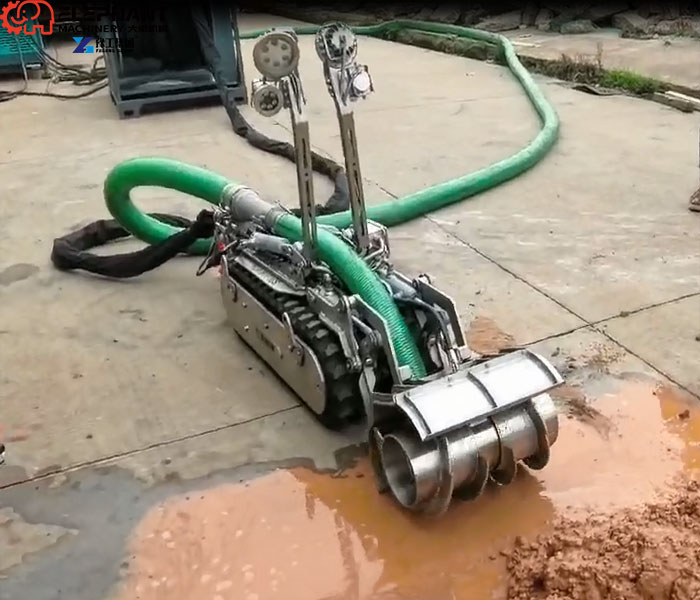

A compact dredging robot, such as the YG450, can be evaluated for these conditions. Before selecting the equipment, customers should confirm the entrance dimensions, internal chamber size, water depth, sludge thickness, and required pumping distance.
The robot is suitable for projects where customers need to:
- Remove accumulated sludge and sediment.
- Reduce the need for manual entry into confined areas.
- Operate cleaning equipment remotely from the surface.
- Transfer mobilized sludge to a designated collection or treatment location.
Pump Station Sludge Removal Robot Parameters
| Parameter | YG450 | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | ≤1700 × 450 × 450 | 1500 × 500 × 650 | 1500 × 600 × 650 | 1600 × 700 × 650 | 1600 × 850 × 700 | 1650 × 960 × 750 | 1900 × 1200 × 750 |
| Applicable Manhole / Access | ≥600 mm opening | ≥600 mm opening | ≥600 mm opening | ≥700 mm opening | ≥800 mm opening | ≥900 mm opening | Large culvert / open access |
| Dredging Width (mm) | 450 | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–12 | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 3 | 4 | 4 | 4 | 4 or 6 |
| Pump Flow (m³/h) | 50 | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0-30 | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150 m) |
| Hydraulic Station Dimensions (mm) | 2000 × 1100 × 1500 (recommended) | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2120 × 1240 × 1200 |
| Main Motor Power (kW) | 11–15 kW | 18 | 18 | 22 | 22 | 22 | 45 kW (50 kW) / Diesel 76 kW (123 kW) |
| Hydraulic System Pressure (MPa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Custom / high-pressure system |
| Particle Size Capacity (mm) | ≤10–20 mm (soft sludge) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 20–30 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30 m/pack, high-pressure resistant |
| Control System | Wireless Remote Control | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 |
Get the Right Model for Your Project
How Does the Pump Station Sludge Removal Robot Work?

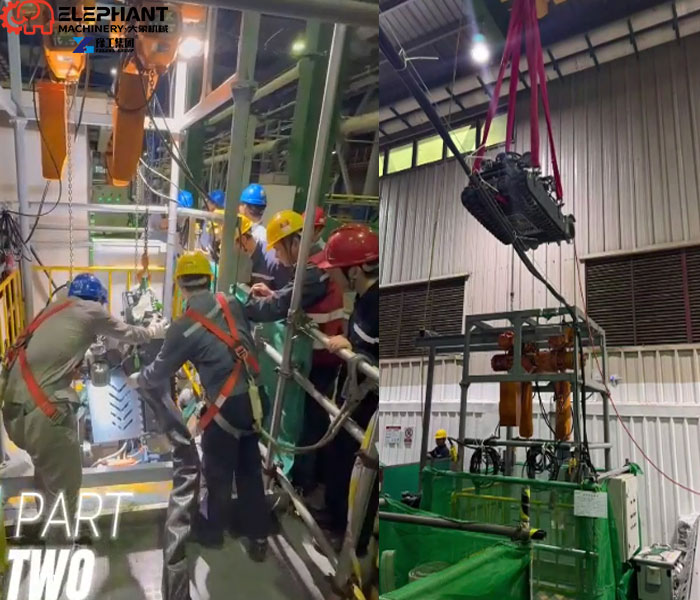

The robot is typically installed through the pump station entrance using a crane, hoist, or other suitable lifting equipment.
1. Lower the Robot Into the Pump Station
The compact robot is connected to the lifting equipment and carefully lowered through the manhole or access opening. The entrance must provide sufficient clearance for the machine and lifting arrangement.
2. Loosen and Mobilize the Sludge

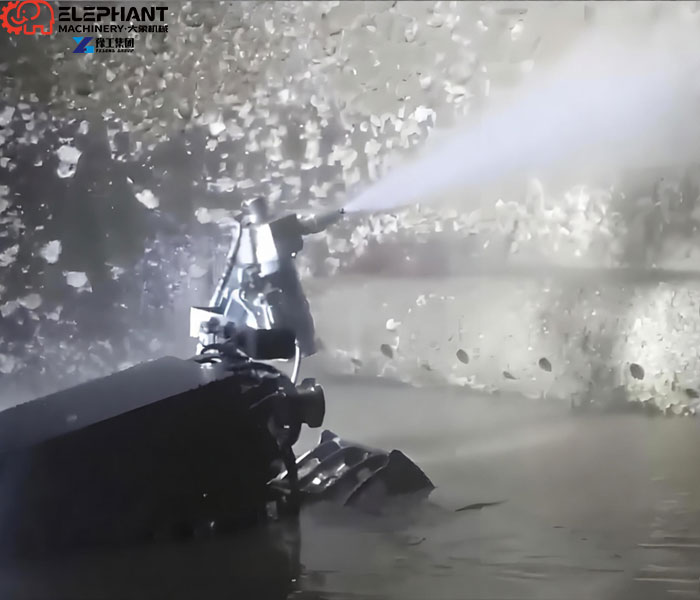

After reaching the working area, the operator uses the remote control to move the robot across the sludge-covered bottom. A cutting head, auger, or high-pressure water jet can help loosen and mobilize suitable sludge deposits.
When sludge is too thick for direct pumping, additional water may be required to create a pumpable slurry. The appropriate method depends on the sludge’s consistency and water content.
3. Pump and Transfer the Slurry
The hydraulic transfer pump conveys the mobilized sludge and water mixture through a discharge pipeline. The pumping distance, elevation, pipeline diameter, and sludge characteristics must be considered when selecting the pumping system.
4. Clean Different Sections Remotely

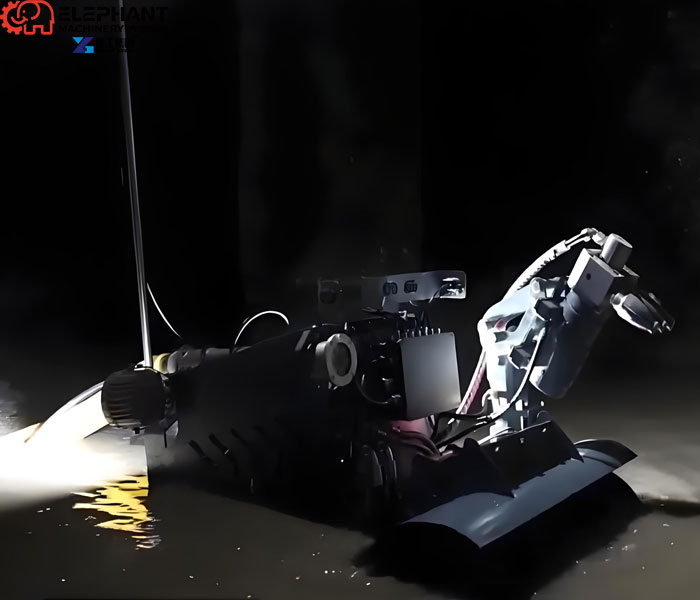

The operator moves the robot to different areas of the pump station and repeats the process according to the sludge distribution. Cleaning performance depends on the chamber layout, bottom conditions, sludge properties, and equipment configuration.
Key Features of the Pump Station Cleaning Robot

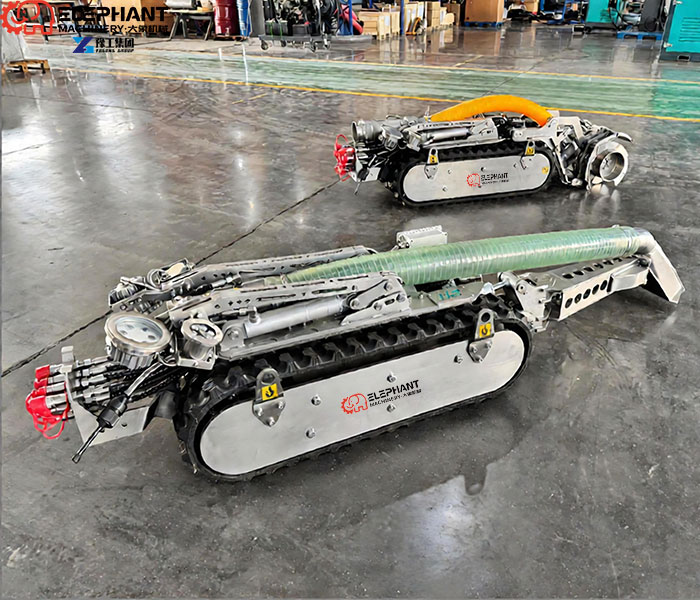

Compact Design for Narrow Access
The compact structure allows the robot to be considered for pump stations with restricted entrances and limited working space. Actual access requirements must be confirmed according to the selected model.
Remote Operation
The robot is controlled from outside the working area through a wireless remote control system. This operating method can reduce the need for workers to enter the pump station during cleaning.
Sludge Loosening and Pumping
The robot can be configured with suitable working attachments, a water jet system, and a hydraulic transfer pump to support sludge mobilization and removal.
Customized Configuration
The equipment can be evaluated for customization according to project requirements, including:
- Robot dimensions and entrance clearance
- Pump capacity and discharge distance
- Operating depth
- Working attachment
- Hydraulic power system
- Electric or diesel power configuration
- Control system and optional camera
Applications of Pump Station Sludge Removal Robot
The pump station sludge removal robot can be considered for the following applications:
- Wastewater pump station wet wells
- Drainage pump stations
- Industrial water collection chambers
- Deep wet wells with suitable access
- Confined tanks and underground water facilities
The robot’s suitability depends on the entrance size, internal space, sludge condition, water depth, and pumping requirements. Technical assessment should be completed before purchase.
How to Select a Suitable Robot?
To recommend an appropriate pump station cleaning solution, customers should provide:
| Project Information | Details to Confirm |
|---|---|
| Entrance size | Manhole diameter or opening width |
| Pump station dimensions | Length, width, and depth |
| Sludge condition | Thickness, density, and water content |
| Water depth | Normal and maximum operating depth |
| Pumping distance | Pipeline length and discharge elevation |
| Lifting method | Crane, hoist, or other lifting equipment |
This information helps determine whether a standard dredging robot is suitable or whether a customized configuration is required.
Pump Station Sludge Removal Robot for Sale
Our remote-controlled dredging robots are designed for suitable sludge and sediment removal applications in pump stations, wet wells, drainage facilities, and industrial water structures.
A compact model such as the YG450 can be evaluated for projects with restricted access and remote operation requirements. The final equipment selection depends on the site dimensions, sludge characteristics, and pumping conditions.
Contact us for a suitable pump station sludge removal solution. Send your pump station dimensions, entrance measurements, sludge information, and project photos for technical evaluation.
FAQ about Pump Station Sludge Removal Robot
1.Can the robot enter through a pump station manhole?
A compact dredging robot may be lowered through a suitable manhole. The opening must be large enough for the selected robot and lifting arrangement.
2.Can it remove thick sludge?
The robot can handle suitable sludge conditions with the correct working and pumping configuration. Thick or compacted sludge may require loosening and additional water to form a pumpable slurry.
3.Does the operator need to enter the pump station?
The robot is designed for remote operation from outside the working area. Site-specific safety procedures must still be followed.
4.Can the robot be customized?
Customization can be evaluated for robot dimensions, pumping capacity, working attachments, operating depth, and other project requirements.
