In February 2026, a municipal contractor from Spain faced a serious operational challenge in an aging urban wastewater network. Several sewer pipelines in the city center had been partially blocked due to long-term sludge accumulation, grease deposits, and sediment layers mixed with sand and organic waste.
During emergency maintenance planning, the client searched on Google for sewer pipe cleaning robot solutions that could operate in narrow pipelines without requiring man-entry. After comparing several suppliers, they contacted Elephant Machinery for a more reliable and automated desilting solution.
The main concern was clear: traditional manual cleaning was unsafe, slow, and unable to handle deep blockage inside confined sewer lines.
Sewer Pipe Cleaning Robot Parameters
| Parameter | YG450 | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | ≤1700 × 450 × 450 | 1500 × 500 × 650 | 1500 × 600 × 650 | 1600 × 700 × 650 | 1600 × 850 × 700 | 1650 × 960 × 750 | 1900 × 1200 × 750 |
| Applicable Manhole / Access | ≥600 mm opening | ≥600 mm opening | ≥600 mm opening | ≥700 mm opening | ≥800 mm opening | ≥900 mm opening | Large culvert / open access |
| Dredging Width (mm) | 450 | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–12 | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 3 | 4 | 4 | 4 | 4 or 6 |
| Pump Flow (m³/h) | 50 | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0-30 | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150 m) |
| Hydraulic Station Dimensions (mm) | 2000 × 1100 × 1500 (recommended) | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2120 × 1240 × 1200 |
| Main Motor Power (kW) | 11–15 kW | 18 | 18 | 22 | 22 | 22 | 45 kW (50 kW) / Diesel 76 kW (123 kW) |
| Hydraulic System Pressure (MPa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Custom / high-pressure system |
| Particle Size Capacity (mm) | ≤10–20 mm (soft sludge) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 20–30 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30 m/pack, high-pressure resistant |
| Control System | Wireless Remote Control | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 |
Project Background: Severe Sewer Blockage in Urban Pipeline System
The client reported that the affected pipeline system included sewer sections ranging from DN600 to DN1200 mm diameter, with some branches having access points as small as inspection manholes of only 600 mm.
Inside the pipelines, accumulated sludge thickness reached nearly 30–50 cm in some sections, causing serious flow reduction and localized overflow risks during rainfall.
Manual intervention was no longer acceptable due to:
- High toxic gas risk (H₂S and methane accumulation)
- Limited access space
- High labor cost and safety restrictions
- Inefficient traditional suction truck cleaning
At this stage, the client also explored other options such as sewer cleaning robot, sludge cleaning robot, and desilting robot, but required a more complete and automated system rather than a single-function device.
Elephant Machinery Customized Solution
After technical evaluation, Elephant Machinery proposed a fully integrated crawler-based sewer pipe cleaning robot system, designed specifically for confined pipeline and municipal wastewater environments.
The final solution included:

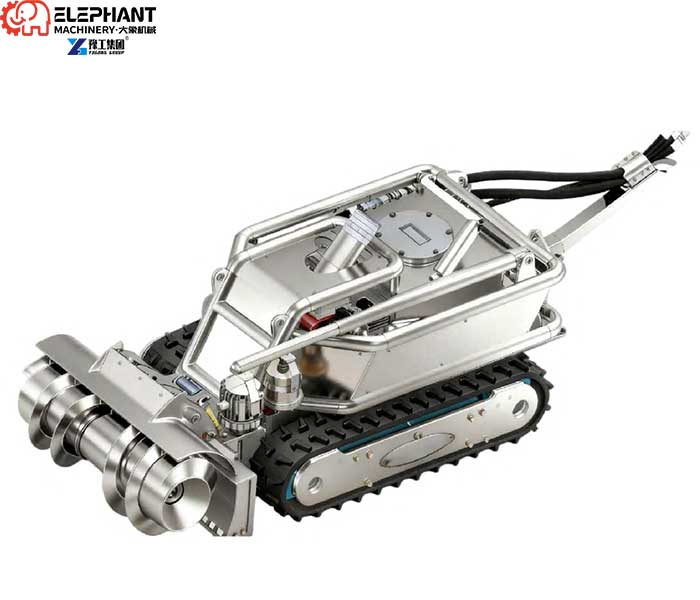

1. Remote-Controlled Crawler Dredging Robot
A compact crawler dredging robot designed for sewer pipelines with DN600 access, equipped with:
- High-torque hydraulic drive system
- IP68 waterproof sealing
- Real-time camera monitoring system
- Modular cleaning head for sludge cutting and suction
This configuration allowed stable operation even in low-visibility, high-sediment environments.

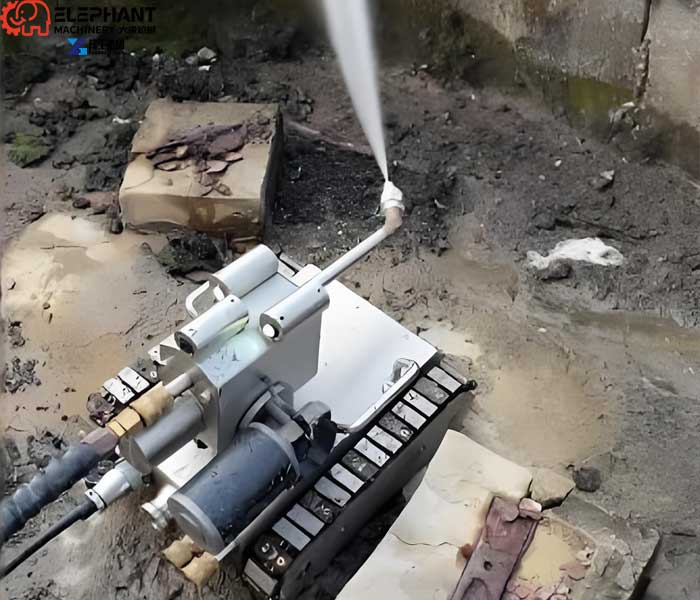

2. High-Pressure Water Jet System
To break down hardened sludge layers, the system included a high-pressure water pump station capable of delivering:
- Adjustable pressure up to 200–300 bar
- Dual-nozzle rotating water jet system
- Deep penetration cleaning for compacted sediment
This significantly improved efficiency compared with conventional vacuum-only cleaning.
3. Sludge Suction & Separation Unit
A mobile sludge removal robot support system was integrated with:
- High-capacity slurry suction pump
- On-site water–solid separation tank
- Continuous discharge pipeline for sediment transport
This ensured that removed material could be processed without secondary blockage.
4. Explosion-Proof Configuration
Due to the presence of methane and industrial wastewater gases, the system was equipped with:
- Explosion-proof motor (ATEX-compliant option)
- Gas monitoring sensors
- Remote isolation control system
This made the system suitable for high-risk confined sewer environments.
Working Performance in Real Sewer Conditions

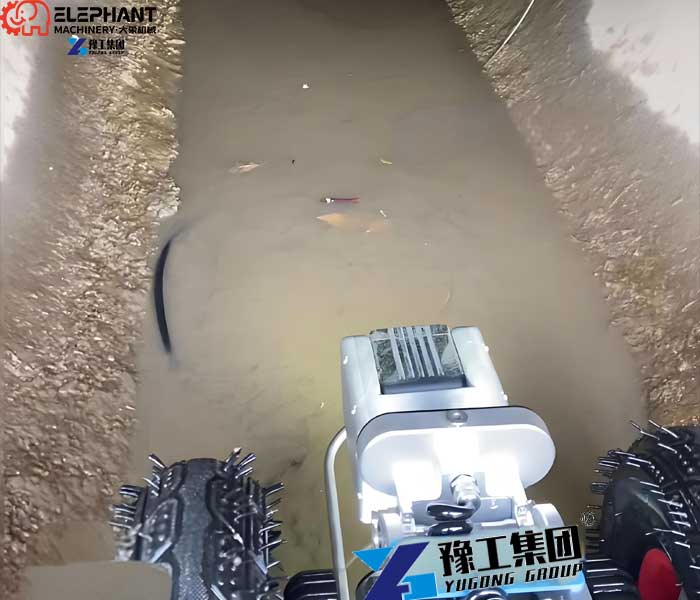

During field deployment in Spain, the sewer pipe cleaning robot was inserted through a DN600 access manhole and traveled over 80 meters inside the pipeline system.
The operation process included:
- Remote inspection and mapping of blockage zones
- High-pressure jet loosening of hardened sludge
- Mechanical cutting and suction of sediment layers
- Continuous slurry discharge to separation unit
Within the first test section, the system successfully removed over 12 tons of compacted sludge and sediment.
The client also tested performance in partially flooded sections, where the robot demonstrated stable movement without loss of traction.
Customer Feedback from Spain
After several days of operation, the Spanish contractor provided very positive feedback:
The most impressive improvements were:
- Significant reduction in manpower requirements (no entry needed)
- Much faster cleaning speed compared to vacuum truck systems
- Stable operation even in narrow DN600 pipelines
- Strong performance in heavy sludge and grease deposits
The client specifically noted that previous desilting robot solutions they tested could not handle mixed sediment conditions, especially in long-distance pipeline sections.
He also appreciated the modular design, which allowed future upgrades for:
- sedimentation tank dredging robot applications
- industrial dredging robot expansion for wastewater treatment plants
- possible adaptation for culvert cleaning robot projects in rural drainage systems
Engineering Advantages of Elephant Machinery System
Compared with conventional cleaning methods, this system provides:
- True no-man-entry tank cleaning system for safety compliance
- Combination of mechanical + hydraulic + suction cleaning
- Adaptability for DN600–DN1200 sewer networks
- High mobility crawler platform for complex pipeline geometry
- Scalable design for municipal and industrial applications
This makes it suitable not only as a sewer pipe cleaning robot, but also as a multi-scenario dredging cleaning robot for wastewater infrastructure.
Conclusion: A Reliable Solution for Modern Sewer Maintenance
This Spain project demonstrates how modern municipalities are shifting toward intelligent and unmanned solutions for pipeline maintenance.
Instead of relying on traditional manual cleaning or single-function equipment, the integrated sewer pipe cleaning robot system provides a safer, faster, and more efficient approach to urban wastewater management.
Elephant Machinery continues to develop advanced solutions including intelligent dredging robot, remote control dredging robot, and sludge removal robot systems for global infrastructure projects.
For cities facing aging sewer networks and increasing maintenance pressure, robotic cleaning technology is no longer optional—it is becoming a necessity.
