Keep Drainage Systems Flowing with Intelligent Robotic Dredging Solutions
Blocked drainage channels are one of the leading causes of urban flooding, infrastructure damage, and rising maintenance costs. Over time, silt, sand, sludge, leaves, construction debris, and other sediments accumulate in drainage canals, culverts, stormwater systems, and wastewater channels, significantly reducing water flow capacity. Even a partially blocked drainage system can increase the risk of flooding during heavy rainfall and require costly emergency maintenance.
Elephant Machinery’s drainage cleaning robot is designed to remove accumulated sludge, sand, sediment, and debris from drainage channels, culverts, stormwater systems, and underground water passages.
Combining intelligent remote control, a heavy-duty crawler chassis, and a powerful dredging system, the robot performs safe and efficient cleaning operations without requiring workers to enter hazardous environments.
It provides a reliable solution for municipalities, flood control departments, wastewater facilities, and industrial sites that require regular drainage maintenance.
Drainage Cleaning Robot Parameters
The following models are designed for different drainage widths, access conditions, sludge volumes, and pumping requirements.
| Parameter | YG450 | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | ≤1700 × 450 × 450 | 1500 × 500 × 650 | 1500 × 600 × 650 | 1600 × 700 × 650 | 1600 × 850 × 700 | 1650 × 960 × 750 | 1900 × 1200 × 750 |
| Applicable Manhole / Access | ≥600 mm opening | ≥600 mm opening | ≥600 mm opening | ≥700 mm opening | ≥800 mm opening | ≥900 mm opening | Large culvert / open access |
| Dredging Width (mm) | 450 | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/min) | 3–12 | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 3–17 |

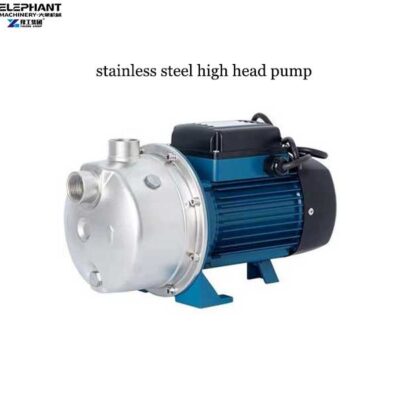

| Pump Diameter (inch) | 3 | 3 | 3 | 4 | 4 | 4 | 4 or 6 |
| Pump Flow (m³/h) | 50 | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0-30 | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150 m) |

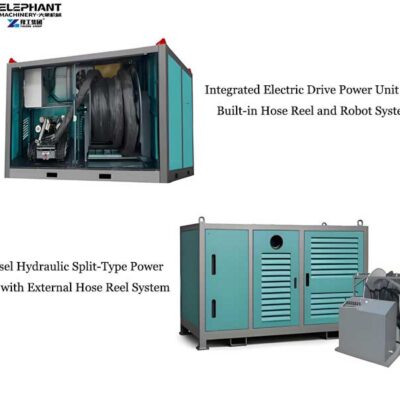

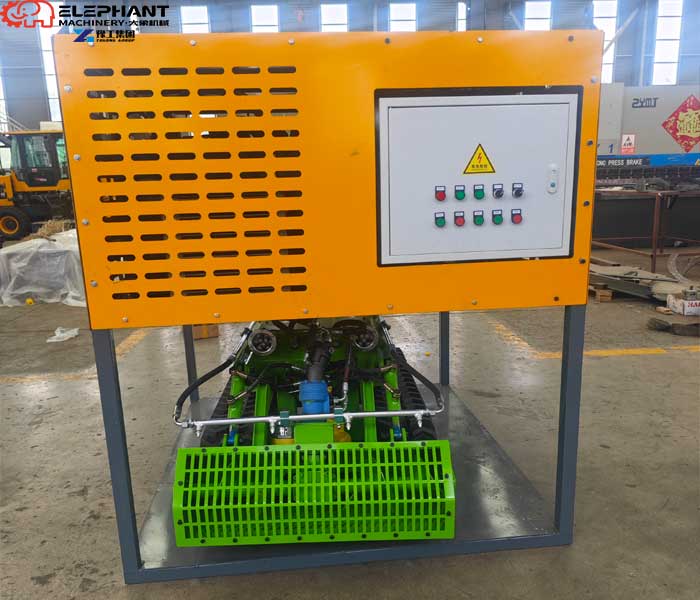

| Hydraulic Station Dimensions (mm) | 2000 × 1100 × 1500 (recommended) | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2120 × 1240 × 1200 |
| Main Motor Power (kW) | 11–15 kW | 18 | 18 | 22 | 22 | 22 | 45 kW (50 kW) / Diesel 76 kW (123 kW) |
| Hydraulic System Pressure (MPa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Custom / high-pressure system |
| Particle Size Capacity (mm) | ≤10–20 mm (soft sludge) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 20–30 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30 m/pack, high-pressure resistant |
| Control System | Wireless Remote Control | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 |
Get the Right Model for Your Project
Why Regular Drainage Cleaning Is More Important Than Ever?
Drainage infrastructure is expected to operate continuously throughout the year, but sediment accumulation is unavoidable. Sand, organic matter, leaves, industrial waste, and sludge gradually reduce the cross-sectional area of drainage systems, slowing water flow and increasing maintenance costs.Stormwater drainage systems are especially vulnerable to sediment accumulation after heavy rainfall, flooding events, and urban construction activities.
Without regular desilting, drainage systems may experience:
- Reduced drainage capacity during heavy rainfall
- Frequent urban flooding and property damage
- Increased corrosion and structural deterioration
- Higher operating and maintenance costs
- Environmental pollution caused by stagnant water
- Difficult and dangerous manual cleaning operations
Preventive maintenance using a professional drainage cleaning robot not only extends the service life of drainage infrastructure but also minimizes emergency repair costs and operational downtime.
Intelligent Robotic Cleaning for Challenging Drainage Environments
Unlike conventional excavators or manual cleaning methods, Elephant Machinery’s crawler dredging robot is specifically developed for confined, submerged, and hazardous cleaning environments.

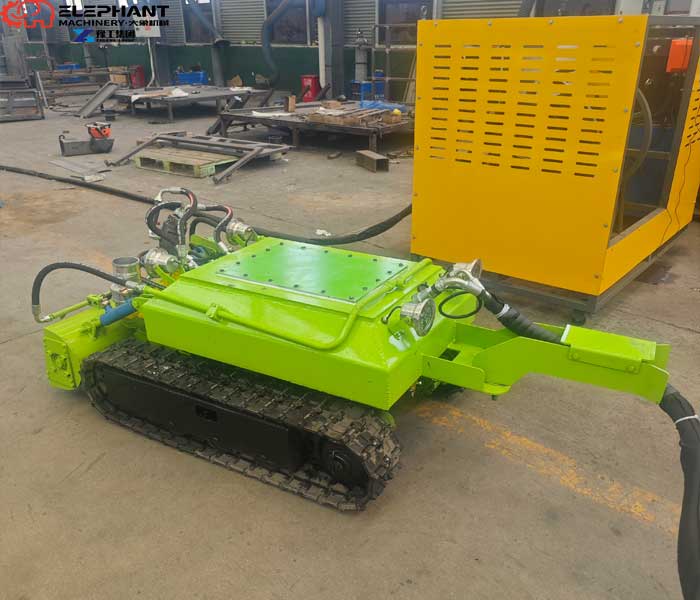

The robot travels directly inside drainage channels using a heavy-duty crawler system while its front-mounted auger loosens compacted sludge. A high-capacity pumping system continuously transports sediment through discharge pipelines, allowing uninterrupted cleaning operations.

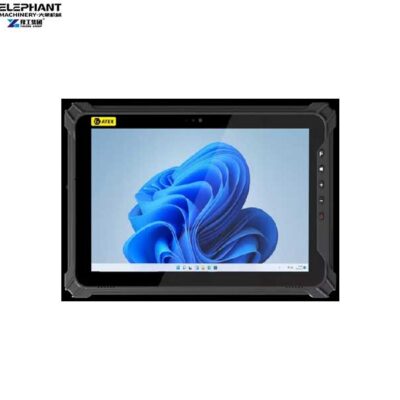

Operators remain at a safe distance using an intelligent remote-control system with real-time camera monitoring, significantly improving both productivity and workplace safety.
This drainage cleaning robot is especially suitable for projects where traditional equipment cannot safely or efficiently operate.
Key Features of Drainage Cleaning Robot
Powerful Sludge Removal Performance
The robot effectively removes sand, silt, sludge, gravel, and organic sediment from drainage systems. Its continuous dredging process minimizes clogging while maintaining high pumping efficiency.
Intelligent Remote Operation
As an intelligent dredging robot, the system allows operators to control movement, pumping, and monitoring remotely, eliminating the need for personnel to enter confined or hazardous spaces.

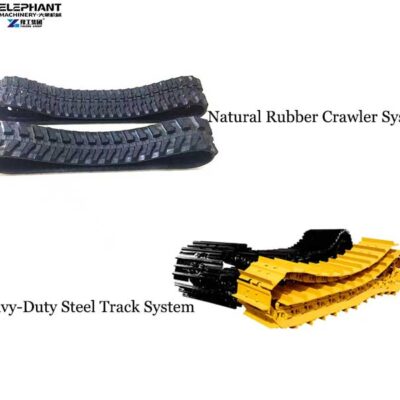

Heavy-Duty Crawler Mobility
The crawler chassis provides excellent traction on muddy, uneven, or submerged surfaces, enabling stable operation where wheeled equipment cannot perform effectively.
High Safety Standards
The robot greatly reduces worker exposure to toxic gases, unstable ground, deep water, and other hazardous conditions commonly found in drainage channels. For special industrial environments, explosion-proof configurations are also available.
Custom-Engineered Solutions
Every drainage system is different. Elephant Machinery can customize the robot according to:
- Drainage channel width and depth
- Culvert dimensions
- Sludge characteristics
- Pumping distance
- Required discharge capacity
- Working water depth
- Power supply requirements
- Explosion-proof specifications
Instead of offering a one-size-fits-all machine, we provide engineering solutions tailored to your project.
Typical Applications of Drainage Cleaning Robot
The drainage cleaning robot is widely used for removing sludge, sediment, sand, and debris from municipal, industrial, and environmental drainage systems. With remote operation and powerful dredging capability, it provides a safer solution for areas where traditional cleaning equipment cannot reach.
Urban Drainage Channels
Removes accumulated sediment, leaves, sand, and debris to restore drainage capacity and reduce flood risks.

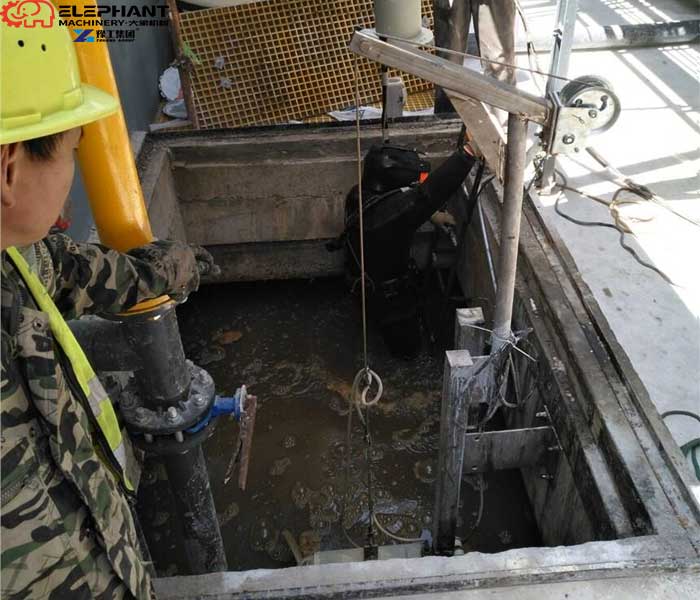

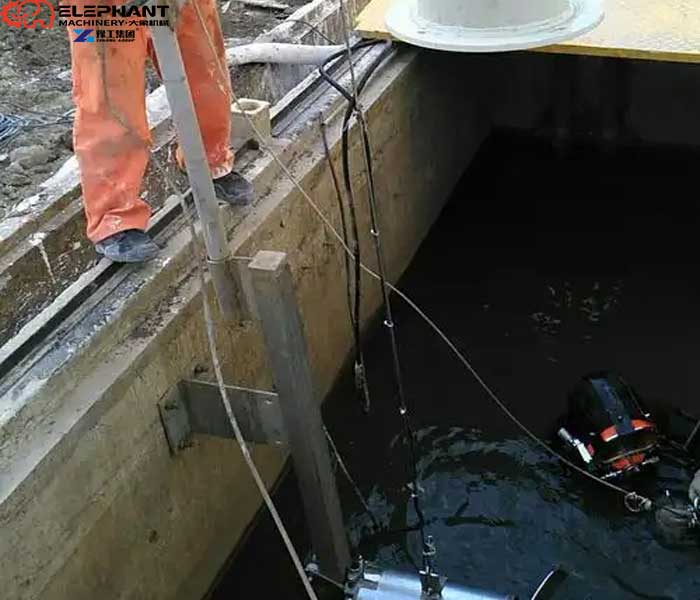

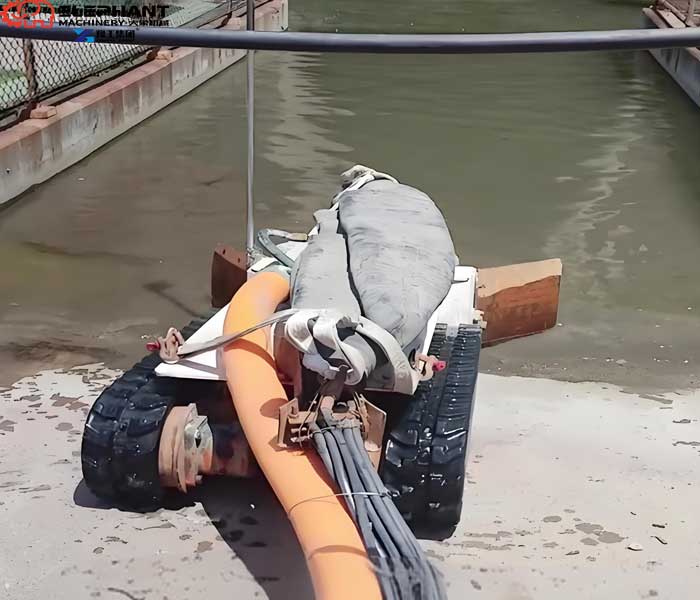

Stormwater Drainage Systems & Culverts
As a reliable culvert cleaning robot, it cleans underground culverts and narrow drainage structures where excavators cannot operate.

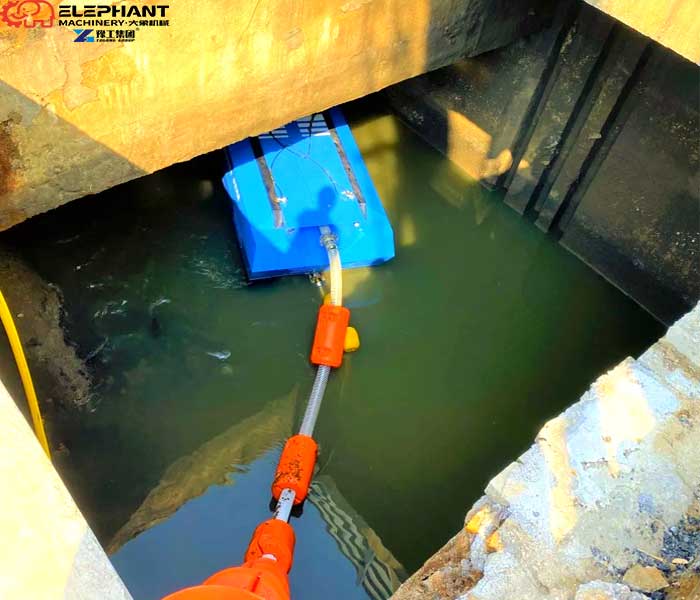

Municipal Drainage Systems
Provides remote sludge removal for urban drainage networks, helping reduce blockages and improve maintenance efficiency.
Wastewater Treatment Facilities
As an effective desilting robot for wastewater treatment plants, it removes settled sludge from channels and sedimentation areas with minimal downtime.
Industrial Drainage Channels
Removes heavy sludge and sediment from industrial drainage systems while improving maintenance safety and operational efficiency.
Flood Control Projects
Helps maintain drainage canals, retention areas, and water management facilities by removing sediment buildup and preserving flow capacity.
Improve Return on Investment
Many organizations still rely on manual labor or excavators for drainage maintenance. While these methods may appear less expensive initially, they often involve higher long-term costs.
By investing in an intelligent robotic cleaning system, customers can benefit from:
- Lower labor costs
- Faster project completion
- Reduced equipment rental expenses
- Improved operator safety
- Less disruption to surrounding traffic and facilities
- More consistent cleaning quality
- Longer service life of drainage infrastructure
For municipalities and industrial operators performing regular maintenance, the investment can often be recovered through labor savings, reduced downtime, and lower emergency repair costs.
Why Choose Elephant Machinery?
Elephant Machinery specializes in advanced robotic dredging solutions for municipal, industrial, and environmental applications. Our engineering team understands that every drainage project presents unique challenges, from narrow culverts and deep channels to high-density sludge and restricted access.
We provide complete support throughout the project, including equipment selection, customized design, technical consultation, commissioning, operator training, and after-sales service.
Whether you need a standard sludge removal robot or a fully customized robotic dredging solution, we are committed to helping you improve cleaning efficiency while reducing operational risks.
FAQ about Sewer Cleaning Robot
Can the robot clean fully submerged drainage channels?
Yes. Depending on the project requirements, the robot can operate in underwater or partially submerged environments while maintaining stable dredging performance.
Can the machine handle compacted sludge?
Yes. The front auger loosens dense sediment before the pumping system transports the material, making it suitable for heavy sludge removal.
Is customization available?
Absolutely. We customize equipment based on drainage dimensions, sludge properties, pumping distance, water depth, and other site-specific conditions.
What industries use this robot?
Typical users include municipal authorities, wastewater treatment plants, industrial facilities, mining operations, environmental contractors, flood control agencies, and water conservancy departments.
How can I choose the right model?
Simply provide information such as channel dimensions, sludge type, working depth, and desired pumping distance. Our engineers will recommend the most suitable drainage cleaning robot for your application.
