A sedimentation tank dredging robot is an advanced unmanned cleaning system designed for removing sludge, sediment, and hardened deposits from sedimentation tanks in wastewater treatment plants and industrial water systems. It combines hydraulic crawler mobility, high-pressure flushing technology, and remote control operation to ensure efficient and safe tank cleaning without the need for manual entry.
Compared with traditional manual cleaning or mechanical dredging equipment, a sedimentation tank dredging robot provides higher efficiency, improved safety, and significantly lower operational downtime.
Sedimentation Tank Dredging Robot Parameters
| Parameter | YG450 | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | ≤1700 × 450 × 450 | 1500 × 500 × 650 | 1500 × 600 × 650 | 1600 × 700 × 650 | 1600 × 850 × 700 | 1650 × 960 × 750 | 1900 × 1200 × 750 |
| Applicable Manhole / Access | ≥600 mm opening | ≥600 mm opening | ≥600 mm opening | ≥700 mm opening | ≥800 mm opening | ≥900 mm opening | Large culvert / open access |
| Dredging Width (mm) | 450 | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–12 | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 3 | 4 | 4 | 4 | 4 or 6 |
| Pump Flow (m³/h) | 50 | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0-30 | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150 m) |
| Hydraulic Station Dimensions (mm) | 2000 × 1100 × 1500 (recommended) | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2120 × 1240 × 1200 |
| Main Motor Power (kW) | 11–15 kW | 18 | 18 | 22 | 22 | 22 | 45 kW (50 kW) / Diesel 76 kW (123 kW) |
| Hydraulic System Pressure (MPa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Custom / high-pressure system |
| Particle Size Capacity (mm) | ≤10–20 mm (soft sludge) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 20–30 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30 m/pack, high-pressure resistant |
| Control System | Wireless Remote Control | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 |
Why Sedimentation Tanks Need Dredging Robots?

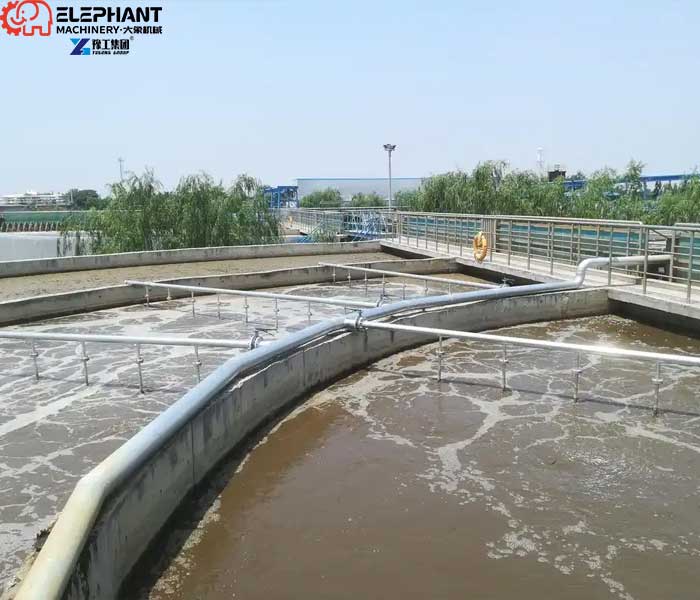

Sedimentation tanks are widely used in wastewater treatment plants and industrial processes, but over time, heavy sludge and solid deposits accumulate at the bottom. This leads to several operational problems:
- Reduced sedimentation efficiency and water treatment capacity
- Thick sludge layers and hard deposits that are difficult to remove
- Frequent shutdowns for manual cleaning
- High safety risks in confined tank environments
- Increased maintenance cost and labor dependency
Traditional cleaning methods often require workers to enter hazardous confined spaces or drain the entire tank, which is inefficient and risky. This is why many facilities are switching to remote control dredging robot systems.
Core Features of Sedimentation Tank Dredging Robot
1. Hydraulic Crawler System for Stable Operation
The robot uses a crawler dredging robot structure powered by a hydraulic drive system, ensuring stable movement in sludge-filled and uneven tank environments.
It can operate in confined sedimentation tanks with strong traction and precise maneuverability, making it suitable for long-duration industrial cleaning tasks.
2. High-Pressure Water Jet Cleaning System
A key feature of the system is its integrated high-pressure water jet (water gun) system, which is used to break down hardened sludge and compact sediment layers.
This allows the robot to:
- Break solidified sludge deposits
- Loosen thick sediment layers before suction
- Improve overall dredging efficiency
- Handle long-term accumulated tank residues
This makes it far more effective than standard tank cleaning robot systems.
3. High-Efficiency Sludge and Sediment Removal
The robot integrates a powerful slurry pumping system that continuously removes sludge from the tank bottom.
It is widely used in:
- sludge removal robot applications
- sediment dredging robot operations
- silt removal robot environments
The system ensures stable flow discharge even under high-density sediment conditions.
4. Remote Control and Intelligent Operation
Modern intelligent dredging robot systems allow operators to control all functions remotely, including movement, water jet activation, and pumping.
Key advantages:
- No human entry into hazardous tanks
- Real-time monitoring via camera systems
- Improved operational safety and precision
- Reduced labor requirements
Key Advantages for Industrial Users
A sedimentation tank dredging robot provides significant operational benefits:
- Safe cleaning without confined space entry
- Continuous operation without full tank shutdown
- Effective removal of hardened sludge and sediment layers
- Reduced maintenance and labor costs
- High adaptability to different tank sizes and conditions
Compared with traditional methods, it significantly improves both efficiency and safety in wastewater treatment operations.
Application of Sedimentation Tank Dredging Robot
The system is widely used in industrial and municipal water treatment environments, including:
- Wastewater treatment plant sedimentation tanks
- Industrial water clarification systems
- Lagoon dredging robot applications
- Sewage tank cleaning robot operations
- Industrial tank cleaning robot projects
- Semi-enclosed tank cleaning systems
- Water storage and treatment facilities
It can also be adapted for desilting robot for wastewater treatment plant requirements and complex sludge environments.
How to Choose the Right Sedimentation Tank Dredging Robot?
Choosing the right sedimentation tank dredging robot depends on the tank conditions, sludge characteristics, and operational requirements. A suitable system should not only improve cleaning efficiency but also ensure stable and safe long-term operation.
- First, consider the sludge type and hardness. For thick or hardened deposits, a robot equipped with a high-pressure water jet system is essential to break down compacted sludge before suction. For lighter sediment, a standard hydraulic dredging system may be sufficient.
- Second, evaluate the tank structure and working environment. Confined or semi-enclosed tanks require a compact crawler dredging robot design with strong maneuverability and stable traction. If the tank is large or deep, a system with high-capacity pumping and long-distance slurry discharge capability is recommended.
- Third, consider the operation method and safety requirements. For high-risk environments, a remote control dredging robot is preferred to eliminate the need for manual entry into confined spaces, significantly improving worker safety.
- Finally, assess whether the system offers customization options such as pump capacity, crawler configuration, and control systems. A flexible solution ensures better adaptability to different sedimentation tank sizes and industrial conditions.
A well-chosen system not only improves cleaning efficiency but also reduces downtime, maintenance cost, and long-term operational risks in wastewater treatment facilities.
Why Customers Choose Elephant Machinery?
Elephant Machinery (Yugong Group) is a professional manufacturer of dredging and environmental cleaning equipment with strong engineering and export capability.
Key strengths include:
- Over 20 years of heavy machinery manufacturing experience
- In-house hydraulic system and dredging technology R&D
- Customized solutions for different tank conditions
- Export experience in Europe, Africa, Southeast Asia, and the Middle East
- Full OEM/ODM support for industrial projects
The company specializes in robotic dredge and robotic dredging solutions designed for complex industrial sludge and sediment environments.
FAQ about Sedimentation Tank Dredging Robot
1. What is a sedimentation tank dredging robot used for?
It is used for removing sludge, sediment, and hardened deposits from sedimentation tanks in wastewater treatment plants and industrial systems.
2. Can it remove hard or compacted sludge?
Yes, it is equipped with a high-pressure water jet system that can break down hardened sludge before removal.
3. Does the tank need to be drained during operation?
No, the robot is designed for underwater and full-tank operation, reducing downtime significantly.
4. Is it safe for workers?
Yes, all operations are remotely controlled, eliminating the need for workers to enter hazardous confined spaces.
5. Can it be customized for different tank sizes?
Yes, Elephant Machinery provides customized crawler systems, pump capacities, and control configurations.
Conclusion
The sedimentation tank dredging robot is a highly efficient solution for modern wastewater treatment and industrial tank maintenance. With hydraulic crawler mobility, high-pressure water jet cleaning, and remote control operation, it effectively solves the challenges of sludge buildup, sediment hardening, and confined space cleaning risks.
For facilities seeking safer, faster, and more cost-effective tank cleaning solutions, intelligent dredging systems provide a reliable and scalable alternative to traditional methods.
