Robotic Pipe Cleaning for Challenging Underground Sewer Systems
Municipal wastewater systems require regular maintenance to prevent pipeline blockages, sediment accumulation, and reduced drainage capacity. However, cleaning underground sewer pipelines is often challenging due to confined spaces, limited access, and hazardous working conditions.
A municipal wastewater operator in Mexico required a safer and more efficient solution for cleaning long underground sewer pipelines and deep wet wells. The customer needed a system capable of removing sewage solids and sludge buildup from a 80-meter underground sewer pipeline, as well as cleaning a 10-meter diameter and 10-meter deep cylindrical wet well.
To meet these requirements, Elephant Dredging developed a customized robotic pipe cleaning solution that enables remote operation, underwater cleaning, and long-distance sludge removal without requiring workers to enter hazardous areas.
Robotic Pipe Cleaning Parameters
| Parameter | YG450 | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | ≤1700 × 450 × 450 | 1500 × 500 × 650 | 1500 × 600 × 650 | 1600 × 700 × 650 | 1600 × 850 × 700 | 1650 × 960 × 750 | 1900 × 1200 × 750 |
| Applicable Manhole / Access | ≥600 mm opening | ≥600 mm opening | ≥600 mm opening | ≥700 mm opening | ≥800 mm opening | ≥900 mm opening | Large culvert / open access |
| Dredging Width (mm) | 450 | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–12 | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 3 | 4 | 4 | 4 | 4 or 6 |
| Pump Flow (m³/h) | 50 | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0-30 | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150 m) |
| Hydraulic Station Dimensions (mm) | 2000 × 1100 × 1500 (recommended) | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2200 × 1200 × 1700 | 2120 × 1240 × 1200 |
| Main Motor Power (kW) | 11–15 kW | 18 | 18 | 22 | 22 | 22 | 45 kW (50 kW) / Diesel 76 kW (123 kW) |
| Hydraulic System Pressure (MPa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Custom / high-pressure system |
| Particle Size Capacity (mm) | ≤10–20 mm (soft sludge) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 20–30 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30–50 optional | 30 m/pack, high-pressure resistant |
| Control System | Wireless Remote Control | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 | Underwater LED ×2 |
Get the Right Model for Your Project
Customer Challenges: Long-Distance Sewer Pipeline Cleaning Requirements
The Mexican municipal project involved several difficult maintenance conditions:

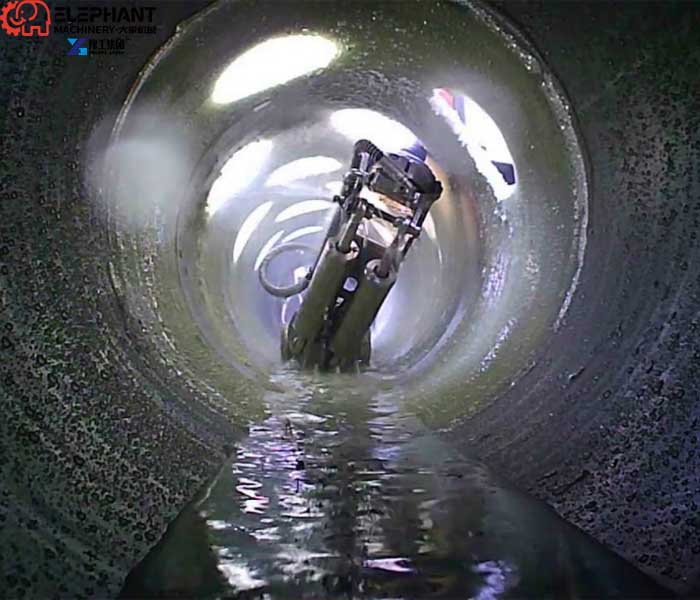

80m Underground Sewer Pipeline Cleaning （Diameter 600 mm）

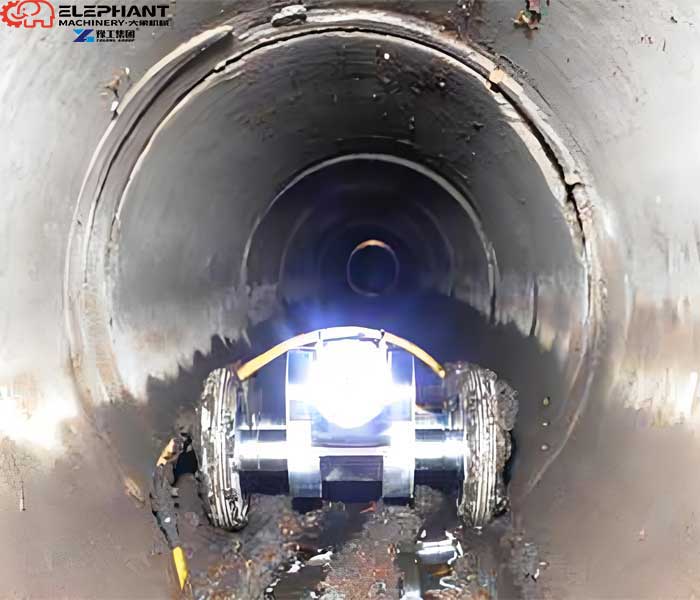

The customer needed equipment that could travel inside a long underground sewer pipeline and effectively remove:
- Sludge buildup
- Sewage solids
- Sediment accumulation
- Pipeline blockages
Traditional manual cleaning methods were inefficient and created safety risks because workers had to operate in confined underground spaces.

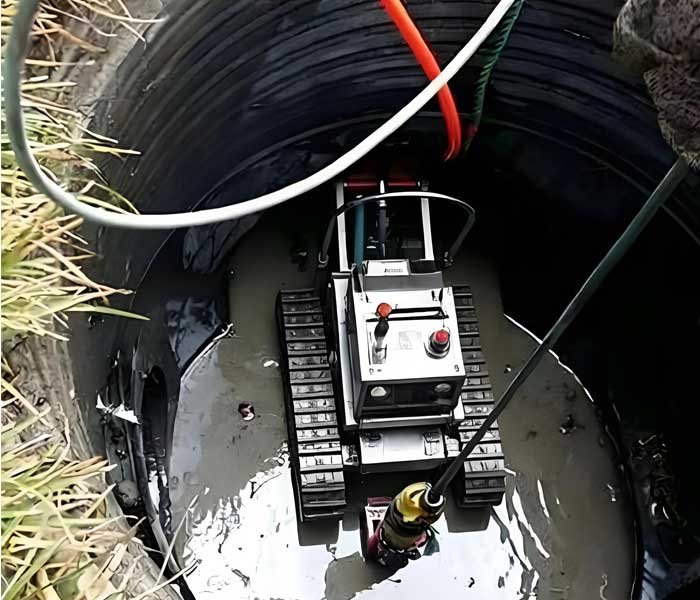

Deep Wet Well Cleaning
The project also included cleaning a cylindrical wet well with:
- Diameter: 10 meters
- Depth: 10 meters
The cleaning system needed to operate underwater, remove accumulated solids from the bottom, and transport the collected material outside the wet well.
Customized Robotic Pipe Cleaning Solution
Based on the customer’s requirements, Elephant Dredging designed a customized pipe cleaning robot system YG450 combining crawler mobility, powerful suction capability, and remote-control technology.
The solution was designed specifically for municipal sewer pipe cleaning applications where traditional equipment cannot operate effectively.
Crawler System for Underground Pipeline Operation

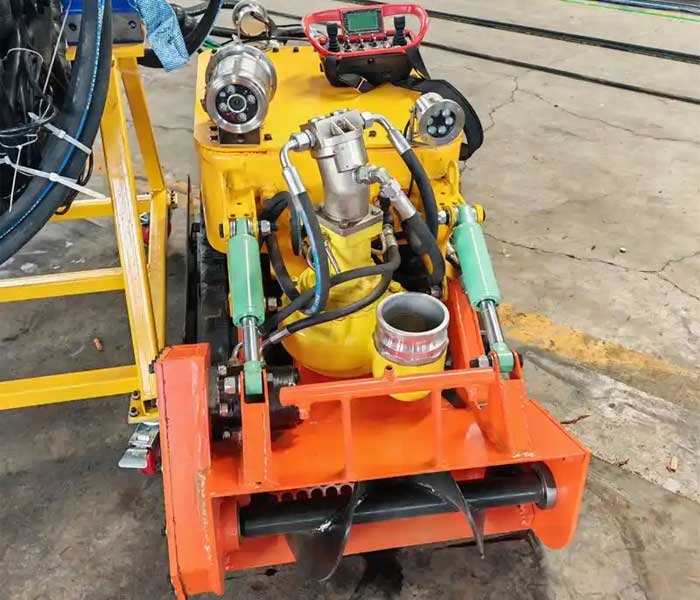

The robotic pipe cleaning system uses a crawler structure that allows stable movement inside underground sewer pipelines.
Key advantages include:
- Strong traction on uneven pipeline surfaces
- Stable underwater operation
- Compact design for confined underground environments
- Flexible movement in complex pipeline conditions
The crawler system enables the robot to perform long-distance cleaning operations while reducing the need for manual intervention.
Powerful Suction System for Sludge and Solid Waste Removal
To handle municipal sewage solids and sediment deposits, the system is equipped with a high-performance suction pump.
Main configuration:
- Pump flow: 100–250 m³/h (customizable)
- Pump head: up to 30 m
- Long-distance sludge transportation capability
- Continuous sediment and solid waste removal
The suction system allows the sewer pipeline cleaning robot to remove accumulated materials and transfer them through discharge pipelines during operation.
Remote-Controlled Pipe Cleaning Without Human Entry
Safety was one of the most important requirements of this project.

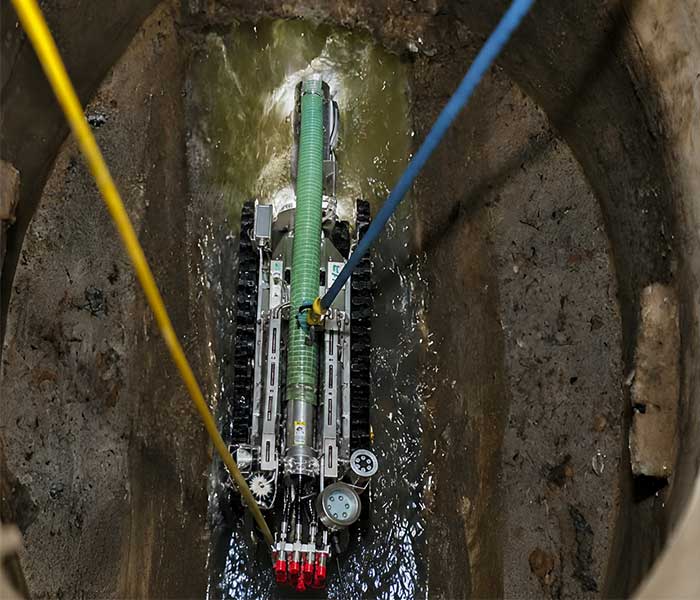

The remote-controlled pipe cleaning robot allows operators to control the equipment from the surface without entering underground pipelines or deep wet wells.
The system features:
- Wireless remote control
- Underwater LED lighting
- Real-time operation monitoring
- No-man-entry cleaning capability
This design significantly reduces risks associated with confined underground space maintenance.

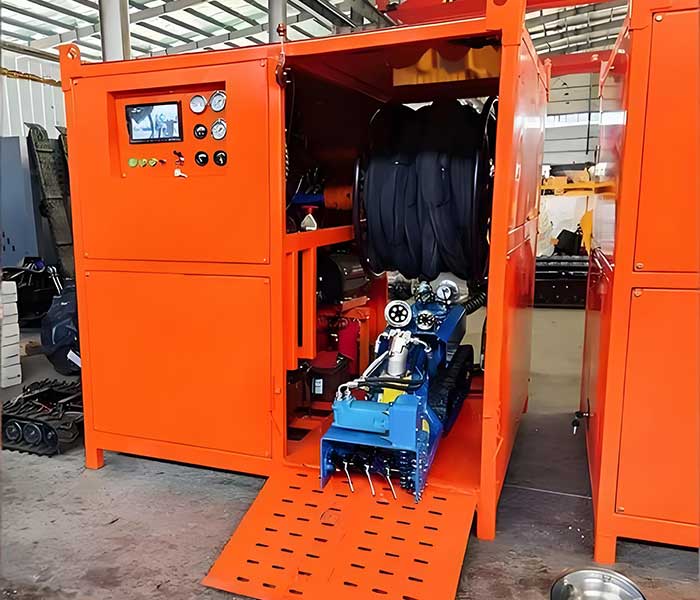

Technical Configuration of Mexico Robotic Pipe Cleaning Project
| Application | Municipal sewer pipeline and wet well cleaning |
| Cleaning distance | Up to 80 m underground pipeline |
| Wet well size | 10 m diameter × 10 m depth |
| Robot type | Crawler pipe cleaning robot |
| Control system | Remote control operation |
| Pump flow | 100–250 m³/h |
| Pump head | Up to 30 m |
| Cleaning targets | Sludge, sewage solids, sediment deposits |
| Working environment | Underground sewer pipeline, wet well, confined space |
Why Choose a Robotic Pipe Cleaning System for Municipal Wastewater Maintenance?
A modern municipal wastewater system requires reliable maintenance equipment that can operate safely in difficult underground environments.
Compared with traditional cleaning methods, a robotic pipe cleaning system provides:
- Safer operation without worker entry
- Higher efficiency for long-distance pipeline cleaning
- Reduced maintenance risks
- Better access to difficult underground areas
- Improved drainage infrastructure performance
For municipalities facing frequent pipeline blockages and sediment-related problems, robotic cleaning technology provides a practical solution for maintaining sewer networks.
Project Results: Improved Municipal Sewer Pipe Cleaning Efficiency
The customized robotic pipe cleaning solution successfully addressed the customer’s requirements for long-distance pipeline maintenance and deep wet well cleaning.
Project benefits included:
- Reduced dependence on manual cleaning methods
- Effective removal of sludge buildup and sewage solids
- Safer maintenance in confined underground spaces
- Improved efficiency of municipal sewer pipe cleaning operations
Conclusion
This Mexico project demonstrates how robotic pipe cleaning technology can improve the maintenance of modern underground wastewater systems.
By combining a crawler system, powerful suction pump, underwater operation capability, and remote control technology, the customized pipe cleaning robot provides a safer and more efficient solution for cleaning long sewer pipelines and deep wet wells.
For municipalities and wastewater operators, robotic pipe cleaning offers a reliable approach to maintaining underground sewer pipelines and improving drainage infrastructure performance.
